Rock Exotica Omni Swivel Pulley

Product #

Certifications: CE, UIAA

Product Info

The Omni combines a swivel and pulley into one tool, and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Traditionally, a pulley is connected to a swivel by a carabiner. However, the Omni eliminates the need for the carabiner, reducing length and pieces of equipment in the rigging system.

The short length of the Omni is important when used in high-angle, confined space or other space-sensitive rigging environments. The reduced weight of the Omni will make hauling your gear easier. Additionally the Omni sideplate can be opened without detaching from the carabiner. Traditional pulleys require removing from the carabiner to change the rope. With the Omni, the user is able to do this while the pulley is still secured.

Key Features
  • Allows rope change without detachment from carabiner
  • The integrated swivel top allows the pulley to orient as needed in response to the load.
  • Pulley body is machined from a solid block of aluminum for strength optimization and weight reduction.
  • Shortens the length of rigging by combining the pulley and swivel in one device.
  • Made In USA
Specs
Sheave Diameter Sheave Material Available Colors Weight MBS WLL Max Rope Certification

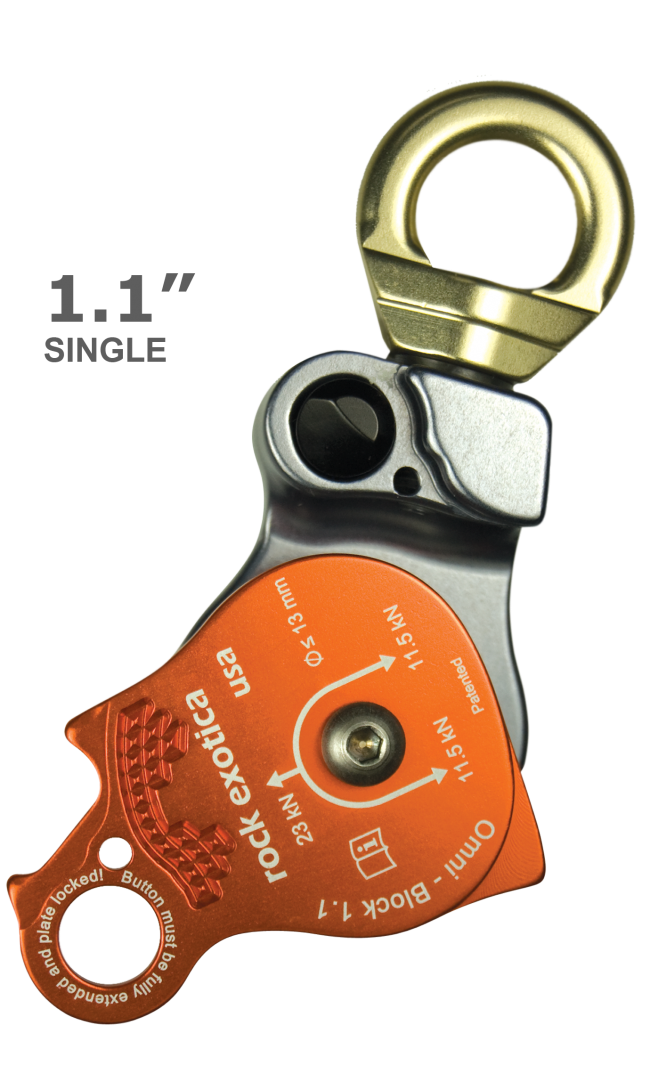

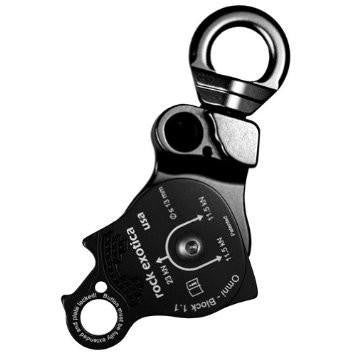

Omni 1.1" Single P54 / P54-B 1.1" (28mm) Aluminum Standard/Black 5.1oz (145gm) 23kN 5kN .5" (13mm) CE / UIAA

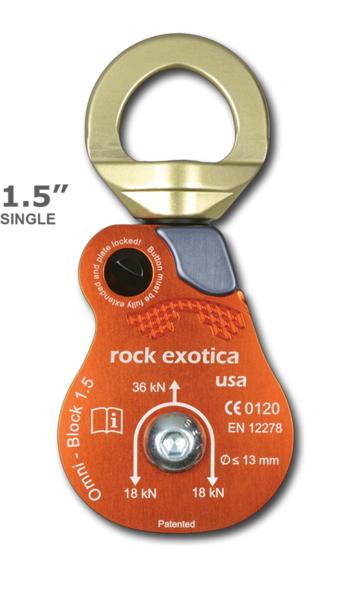

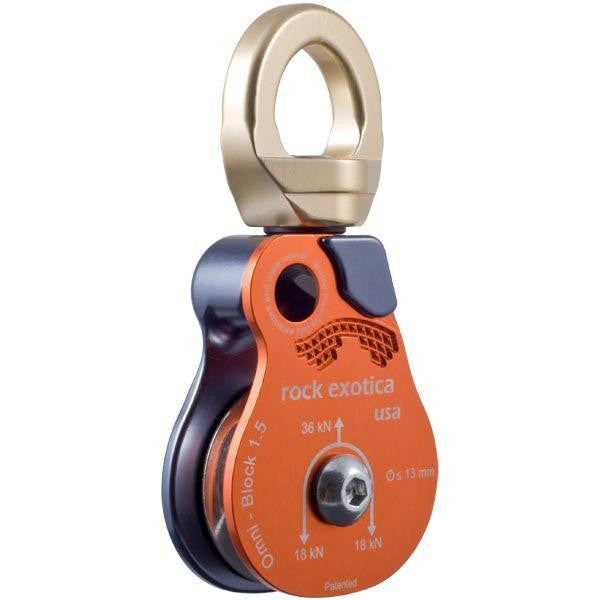

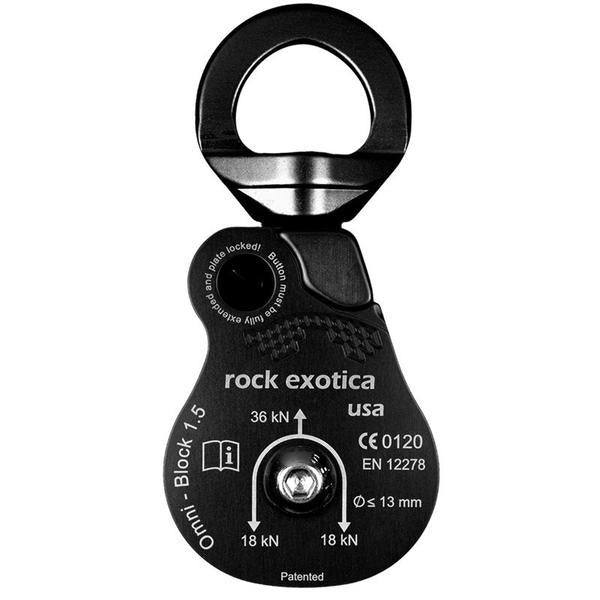

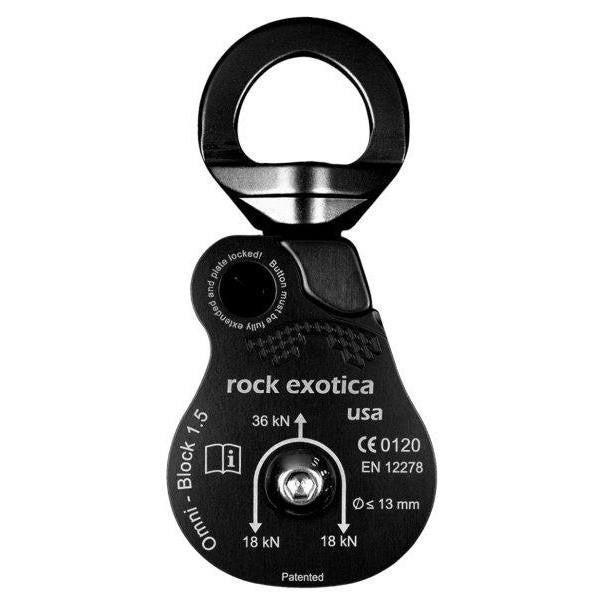

Omni 1.5" Single P51 / P51-B 1.5" (38mm) Aluminum Standard/Black 9.2oz (260gm) 36kN 8kN .5" (13mm) CE / UIAA
Omni 1.5" Steel P51 SS / P51 SS-B 1.5" (38mm) Stainless Standard/Black 10.7oz (303gm) 36kN 8kN .5" (13mm) CE / UIAA

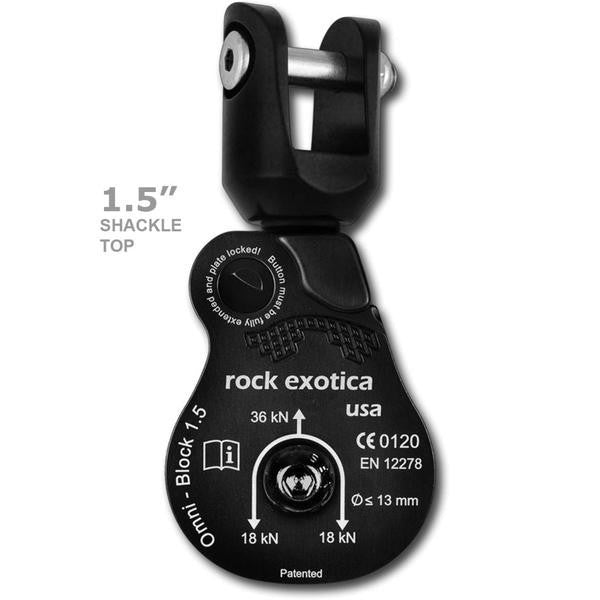

Omni 1.5" Shackle P51 SH / P51 SH-B 1.5" (38mm) Stainless Steel Black Only 10.7oz (303gm) 36kN 8kN .5" (13mm) CE / UIAA

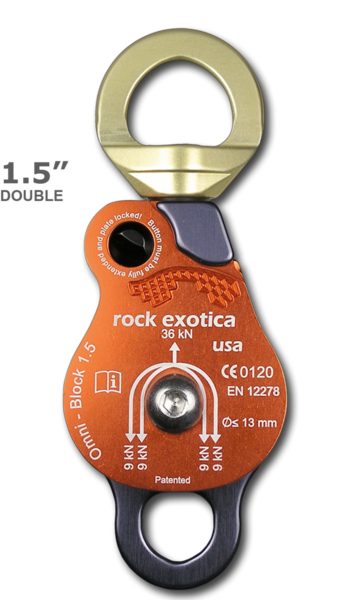

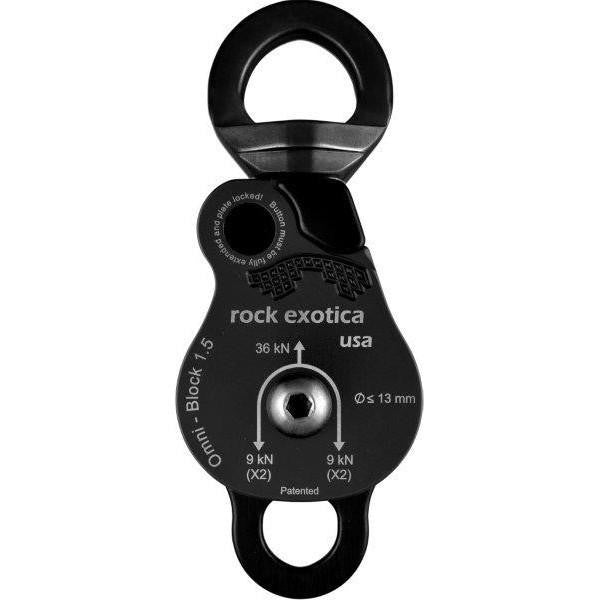

Omni 1.5" Double P51 D / P51 D-B 1.5" (38mm) Aluminum Standard/Black 14.5oz (411gm) 36kN 8kN .5" (13mm) CE / UIAA

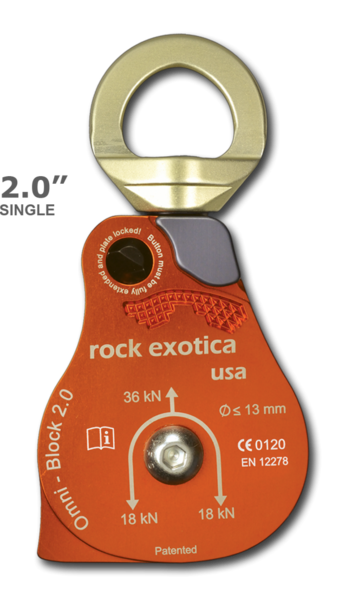

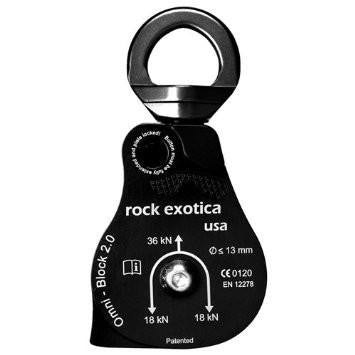

Omni 2.0" Single P53 / P53 D-B 2.0" (51mm) Aluminum Standard/Black 12.3oz (348gm) 36kN 8kN .5" (13mm) CE / UIAA

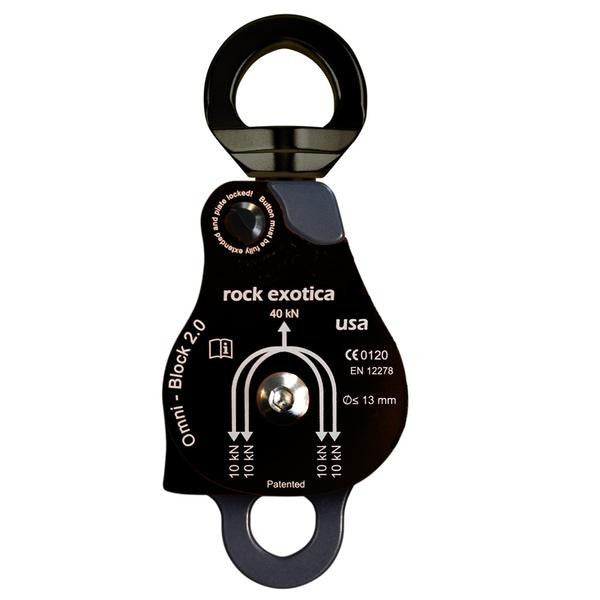

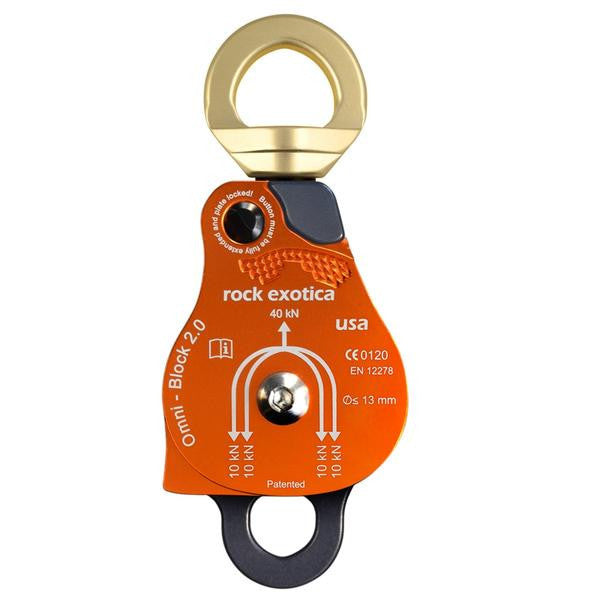

Omni 2.0" Double P53 D / P53 D-B 2.0" (51mm) Aluminum Standard/Black 20.9oz (591gm) 40kN 10kN .5" (13mm) CE / UIAA

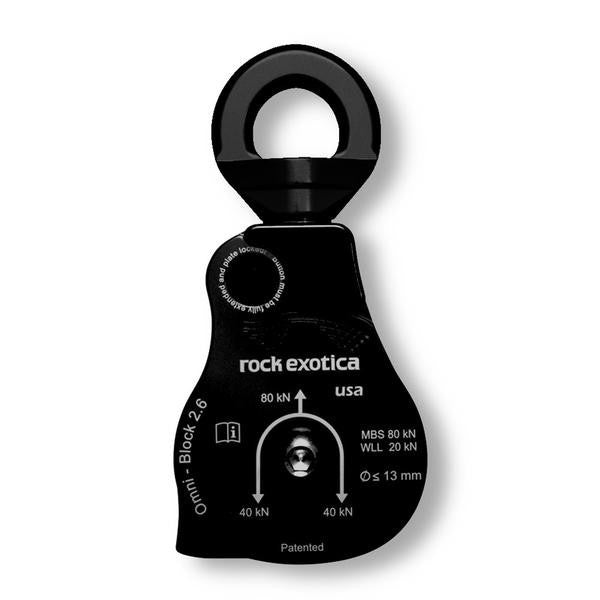

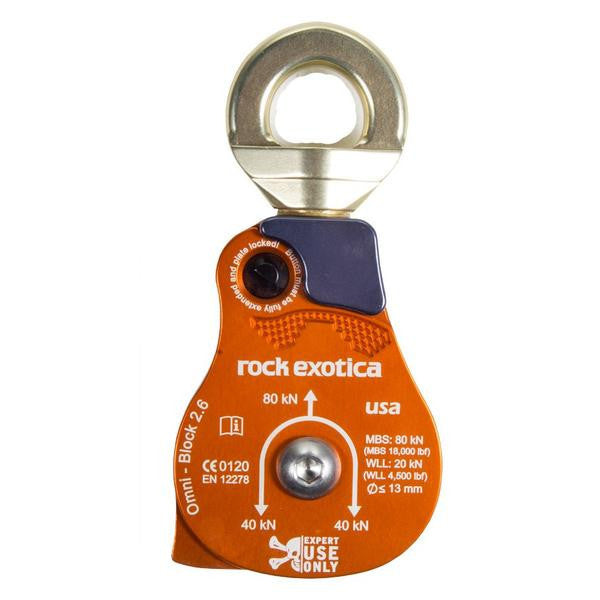

Omni 2.6" Single P55 2.6" (66mm) Aluminum Standard 1.9 lbs (850gm) 80kN 20kN .5" (13mm) CE
