RAMFAN UB 20 Manhole Entry System

Product #

Products available by Quote Only.

Product Info

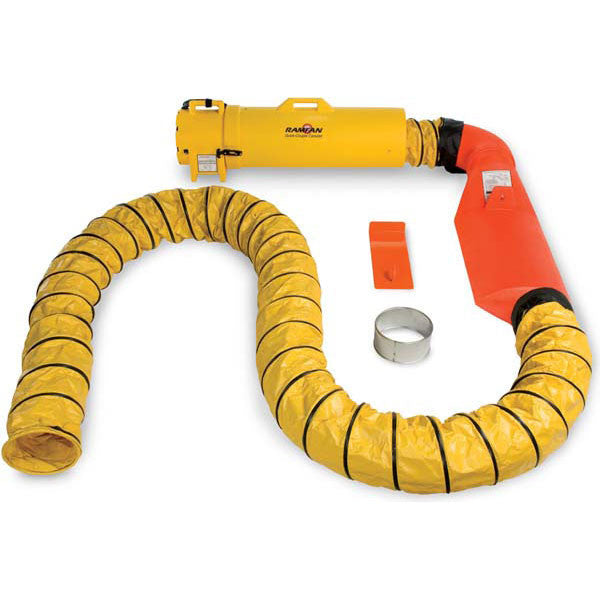

A complete system for ventilating manholes and vertical confined spaces while allowing easy entry and exit, the RAMFAN UB 20 has a saddle vent, which allows unobstructed airflow down through the vertical opening. The 15-foot (4.6-m) duct can be attached above or below ground to meet the site's ventilation needs. The system includes: UB20 Blower/Exhauster, Saddle Vent and Mount, 90-Degree Elbow, Quick Couple Canister, 5 foot x 8 inch (152 x 20 cm) duct, and 15 foot x 8 inch (457 x 20 cm) duct. Be sure to ask about our complete line of RAMFAN products available.

Specs
  • Motor: 1/3 hp, 115 V, 60 Hz
  • Output: 980 CFM (1,666 m3/hr)
  • Dimensions: 14 x 12 x 13 in (36 x 30 x 33 cm)

Weight

  • Box 1: Blower/Exhauster, 19 lb (8.6 kg)
  • Box 2: Saddle vent, elbow, mount, ducts and canister, 44 lb (20 kg)

Product Weight 2 lb (28.1 kg)
Specs 60 Hz / 115 VAC
Color Yellow
