RAMFAN Intrinsically Safe Blower/Exhauster

Product #

Products available by Quote Only.

Product Info

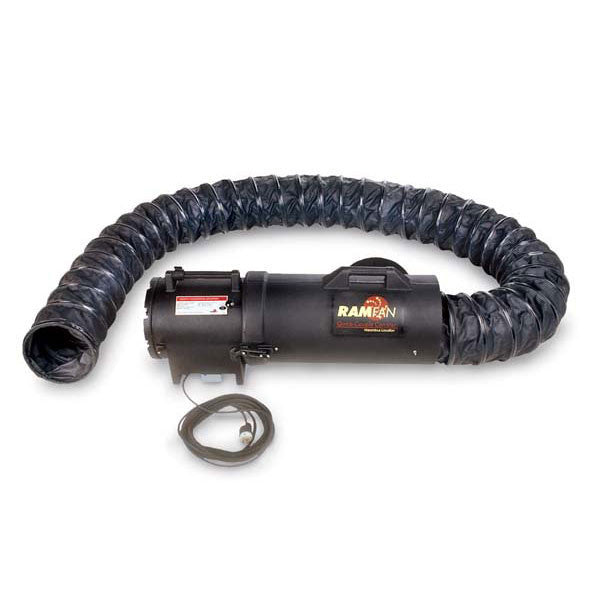

Designed to meet the challenges of hazardous atmospheres, the RAMFAN UB20xx 8-inch (20-cm) blower/exhauster comes with a 1/3-hp, 115 VAC motor, a Totally Enclosed Hazardous Location Motor rated TEAO X-Proof, with the enclosures rated XPAO. The glass-reinforced, carbon-filled housing is antistatic. The 25-foot (7.6-m) duct and its Quick-Couple Canister, which connects to either end of the fan, are both anti-static. Stock fans are available with a standard three-prong plug or a Killark 125 VAC 60 Hz Explosion Proof plug, which can be plugged into a 115 VAC outlet (U.S. only). Other types of plugs are available by special order.

The RAMFAN Intrinsically Safe Blower/Exhauster may be used in environments containing hazardous gases or vapors and/or dust. However, it is the user's responsibility to know the classification of the location or environment and to determine whether or not the fan is safe to use under the actual circumstances.

Specs

Specifications

  • Motor: 1/3 hp, 115 V, 60 Hz
  • Output: 980 CFM (1,666 m3/hr)
  • Dimensions: 14 x 12 x 13 in (36 x 30 x 33 cm)

Weight:

  • Box 1: Blower/Exhauster, 25 lb (11 kg)
  • Box 2: Duct and Canister, 29 lb (13 kg)
Option Item Product Weight Product Model Specs Color
w/Standard Plug 575825 4 lb (24.5 kg) BLOWER, INTRINSIC W/STANDARD PLUG UB20xx with standard plug 60 Hz / 115 VAC Black
w/Killark Explosion Proof Plug 575925 4 lb (24.5 kg) UB20xx w/ a Killark Explosion Proof Plug 60 Hz / 115 VAC Black
