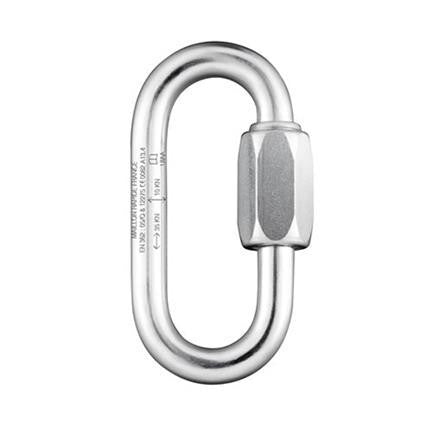

PMI Screw Links (Oval)

Product #

Product Info

Screw links stand up to multi-directional forces better than carabiners and allow ample room for multiple pieces of gear to be attached. Ideal harness attachment in ascending systems or for joining anchor straps.

Note: Links are stamped with a Working Load Limit (WLL) that is about 1/5 of its rated breaking strength.

Specs

Part No. HD26231 HD26150 HD26045 HD26022
MBS 7.9 kN (1765 lbf) 22 kN (5000 lbf) 27 kN (6050 lbf) 54 kN (12125 lbf)
WLL 1.6 kN (353 lbf) 4 kN (990 lbf) 5 kN (1210 lbf) 11 kN (2425 lbf)
Weight 0.5 oz (15 g) 1.0 oz (21 g) 2.0 oz (51 g) 5.0 oz (137 g)
Length 2.09" (5.3 cm) 1.95" (4.9 cm) 2.61" (6.6 cm) 3.50" (8.9 cm)
Width 0.92" (2.3 cm) 1.00" (2.5 cm) 1.25" (3.2 cm) 1.75" (4.4 cm)
Height 0.16" (4.0 mm) 0.19" (5.0 mm) 0.28" (7.0 mm) 0.44" (1.0 cm)
Gate Opening 29/64" (11.4 mm) 1/4" (6.5 mm) 11/32" (8.5 mm) 15/32" (12.0 mm)
Major Axis 7.9 kN (1765 lbf) 22 kN (5000 lbf) 27 kN (6050 lbf) 54 kN (12125 lbf)
Material Stainless Steel Stainless Steel Galvanized Steel Galvanized Steel
