Just the thing for smaller ropes and lighter loads, SMCs Micro PMPs are ideal for building a mini haul rig or anywhere that a compact lightweight system is needed.

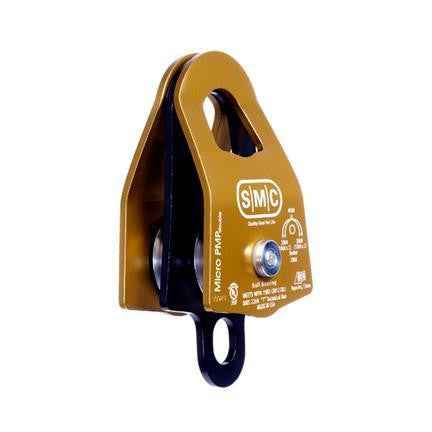

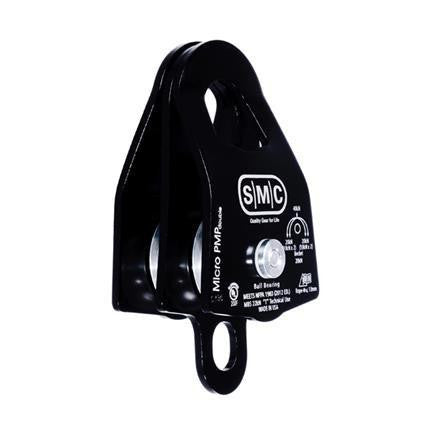

Double version is designed with a becket to accommodate compound and complex pulley systems. Max rope diameter 13 mm.
- Precision machined aluminum side plates and 1.38" sheaves
- Sealed Ball Bearings
- Double pulleys include a becket

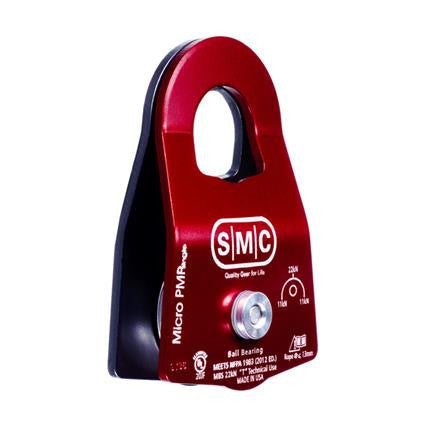

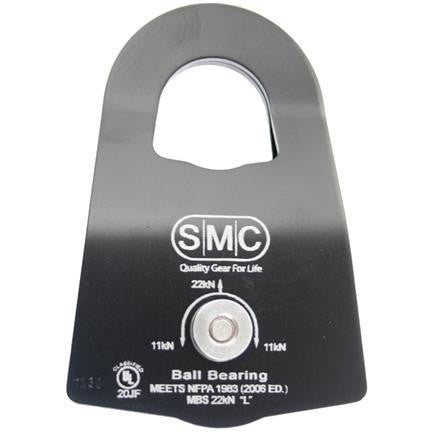

Type: Single Pulley
MBS: 22 kN (5000 lbf)
Weight: 3.5 oz (99 g)
Length: 3.75" (9.5 cm)
Width: 2.55" (6.5 cm)
Height: 1.12" (2.8 cm)
Axle: Ball Bearing
Sheave: 1.37" Aluminum
Max Rope Size: 13 mm
|Part #||Type||Color||Qty In Stock|
