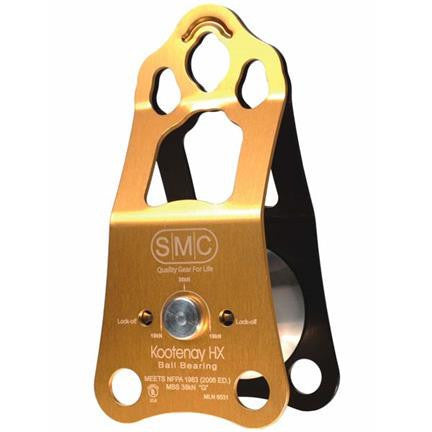

PMI Kootenay HX Pulley

Product #

Certifications: NFPA 1983 (2012) G

Product Info

The Kootenay HX from SMC is the most advanced Knot Passing Pulley on the market. This is an entirely new and more compact design and lives up to its HX (High Strength) name as the lightest, strongest, most efficient, and durable pulley of its kind available. Sealed ball bearings provide optimal efficiency and help to reduce the performance-robbing resistance that is inherent in most multiple component systems. Adding to its versatility, the Kootenay HX may also serve as an edge roller for rope protection.

Key Features
  • Sealed Ball bearings
  • Solid aluminum side plates
  • High-strength aluminum sheave
  • Primary carabiner hole accepts numerous rescue carabiners
  • Secondary carabiner holes for use with tag or belay lines
  • Two quick-release pins included for conversion to a high-strength tie off
  • For use with 10 mm to 13 mm rope
Specs
Color Gold
Type Single Pulley
MBS 38 kN (8542 lbf)
Weight 1 lbs 10.4 oz (750 g)
Length 8.67" (21.6 cm)
Width 4.34" (11.0 cm)
Height 3.40" (8.6 cm)
Axle Ball Bearing
Sheave 3.46" Aluminum
Tread 2.22"
Max Rope Size 13 mm
Material Aluminum
