PMI ED Xtreme10k Dynamometer w/Radio,Backlight,Shackles

SKU: HD26130

1 in stock
Product Info

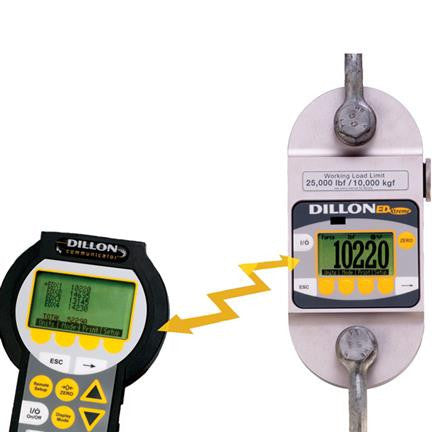

The Ed-Xtreme dynamometer is a precise instrument that can survive real-world punishment. Use it for simple applications, or tap into its sophisticated user-defined options. Select an optional communicator to monitor a series of critical stress points from a single location or to download your data to a PC via an RS-232 connection for compilation and analysis and generate hard-copy printouts. For hard wire capability, a serial cable connects easily to included recessed connector on rear of instrument. The Ed-Xtreme Remote Communicator is a handheld remote command hub that lets users simultaneously display and control up to 16 EDx dynamometers within the same airspace. The Communicator also calculates the total load on the individual dynamometers, offers custom units, and lets users export data to a PC for recording or analysis. Contact PMIu2019s customer service department for information on units not shown here, including other force ranges (2,500 to 330,000 lbf), and accessories.

Key Features
  • Shackles included
  • Order units with optional radio transmitters for use with the Ed-Xtreme Remote Communicator
  • 5:1 strength and safety ratio
  • Accuracy: 0.1% of capacity
  • 1 part in 1000 display mode with Dillon provided shackles
  • LCD display shows up to 6 digits
  • Display updates 2 x per second
  • Recessed sealed connector for serial communications or connection to a Communicator
  • Print or extract data easily
  • Continuous output
  • 320 hours battery life with typical use
  • 2 C-cell alkaline batteries
  • Operating temperature -4u00b0 F to 140u00b0 F (-20u00b0 to 60u00b0 C)

Weight: 22 lbs 0 oz (9.979 kg)
