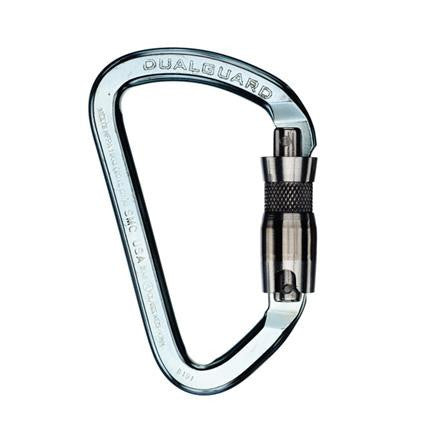

PMI DualGuard Auto-Lock Lite Steel Carabiner

Product #

Certifications: NFPA 1983, NFPA G

Product Info

A Lite Alloy steel carabiner featuring double or triple action gates. Easily opened with one hand, but once released, the gate closes to a fully locked position. The carabiner gate and sleeve are stainless steel for problem-free operation.
An offset shape provides a smooth transfer of the Munter hitch when used as a belay and has ample volume to clip in large diameter ropes and over the rails of most litters.

Key Features
  • Lite Alloy Steel Body
  • Stainless Steel spring, pin, and sleeve
Specs

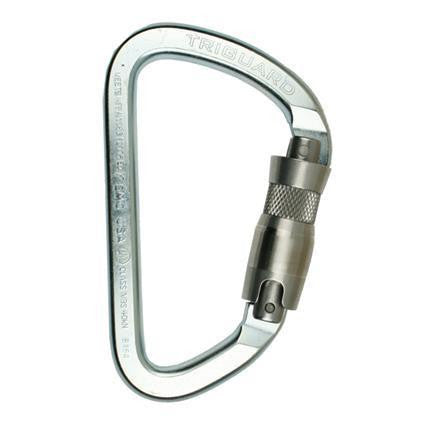

Type Dual Auto Lock Triple Auto Lock
MBS 45 kN (10116 lbf) 45 kN (10116 lbf)
Weight 7.0 oz (199 g) 7.0 oz (199 g)
Length 4.52" (11.5 cm) 4.52" (11.5 cm)
Width 2.76" (7.0 cm) 2.76" (7.0 cm)
Gate Opening 0.88" (22.4 mm) 0.88" (22.4 mm)
Major Axis 45 kN (10116 lbf) 45 kN (10116 lbf)
Minor Axis 12 kN (2697 lbf) 12 kN (2697 lbf)
Gate Open 11 kN (2473 lbf) 11 kN (2473 lbf)
Material Zinc Plated Steel Alloy Zinc Plated Steel Alloy
