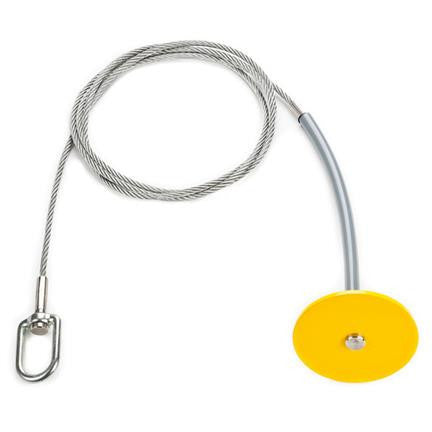

PMI Drop Through Anchor Kit

Product #

Certifications: ANSI Z359.1, EN 795:1996 (+A1:2000) Class B

Product Info

An ANSI Z359 anchorage connector that be used with steel grates or holes in concrete.

Key Features
  • 3/16 Steel plate with a 8 1/2 cable attached to a swiveling D-Ring
  • Drops through the opening in any 1 3/4- 2 Substrate
  • Used only as an overhead anchor in concrete floors, steel girders, steel grates, and other applications
Specs
Sizing Info Plate Dimensions - 4" x 3/16"
MBS 22 kN (5000 lbf)
Weight 2 lbs 9.6 oz (1.179 kg)
Length 8.50 ft (2.6 m)
