Petzl Am'D Pin-Lock Carabiner
SKU: M34A PL
By Petzl
Product Info

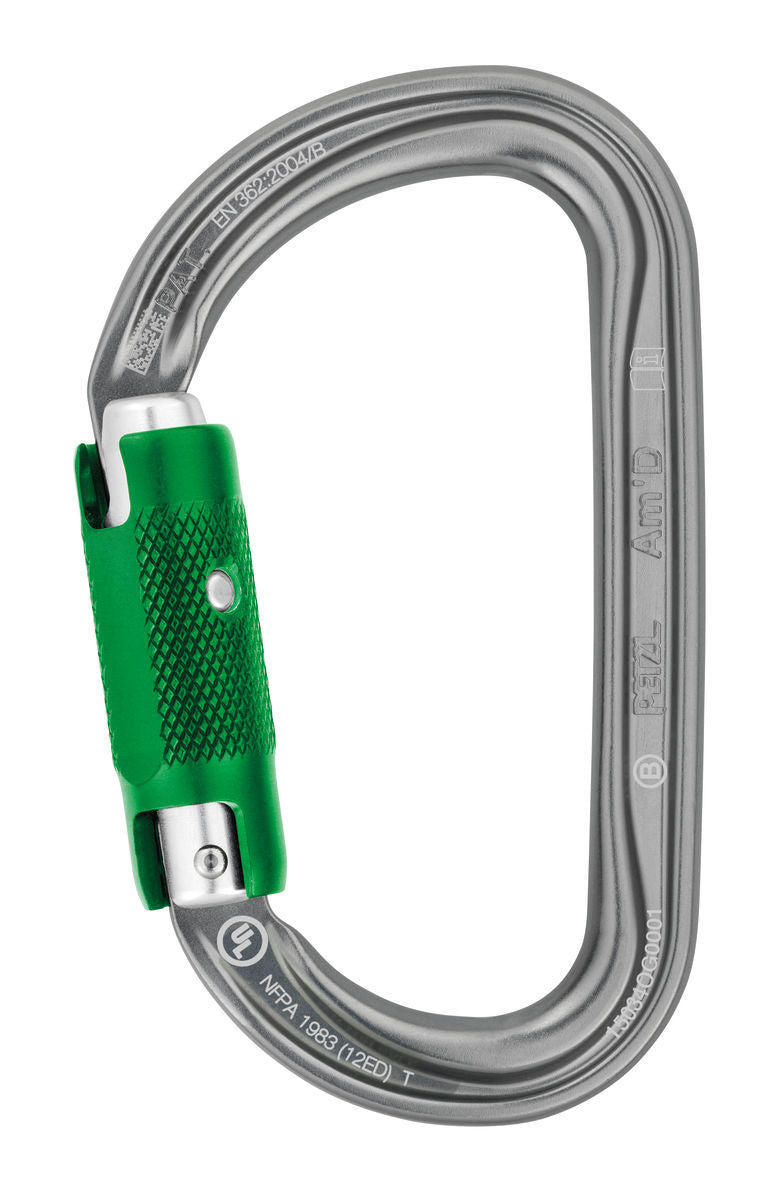

Asymmetrical aluminum carabiner, unlocks with a tool
The Am'D PIN-LOCK asymmetrical aluminum carabiner is designed for use with groups. It secures the connection of the user thanks to its PIN-LOCK system, which can only be opened by the operator with a specific unlocking tool. Am'D PIN-LOCK can be connected to the CAPTIV bar to favor positioning of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Key Features
- Carabiner designed for use with groups:
- to fasten a harness (in combination with the CAPTIV positioning bar)
- to connect a trolley to a continuous lifeline
- Secures the connection of the user:
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device
- PIN-LOCK locking system is unlocked only with a special tool, limiting the risk of the user opening the carabiner
- Easy to use by the operator:
- Keylock system to avoid any involuntary snagging of the carabiner

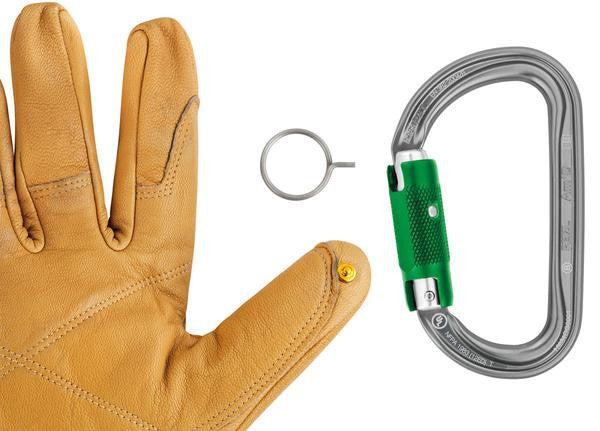

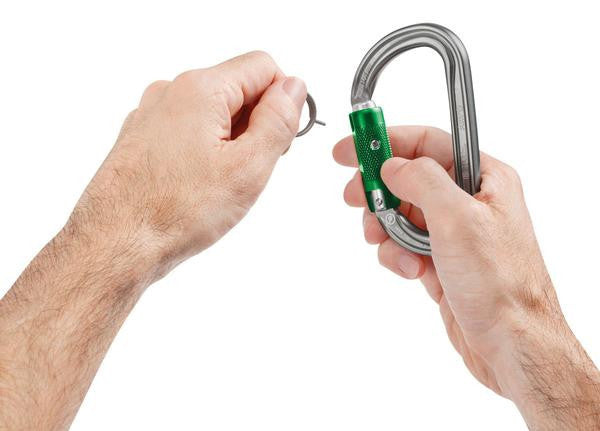

- two unlocking tools: for repeated manipulations, the unlocking pin can be installed directly on a glove; for immediate and occasional use, the unlocking ring can be kept on a carabiner on the harness
- H-profile protects markings from abrasion and ensures improved strength-to-weight ratio
- Sold in ready to assemble packs of 10 with two unlocking tools or individually with the unlocking ring only
Specs
- Material(s): aluminum
- Certification(s): CE EN 362, CE EN 12275, UKCA, EAC, GB/T 23469 / B, XF 494: FZL-G-Q
| References | M34A PL | M34AB PL |
|---|---|---|
| Locking system | PIN-LOCK | PIN-LOCK |
| Inner Pack Count | Sold individually | Sold in a pack of 10 |
| Weight | 80 g | 800 g |
| Color(s) | gray | gray |
| Major axis strength | 27 kN | 27 kN |
| Minor axis strength | 8 kN | 8 kN |
| Open gate strength | 7 kN | 7 kN |
| Gate opening | 25 mm | 25 mm |
