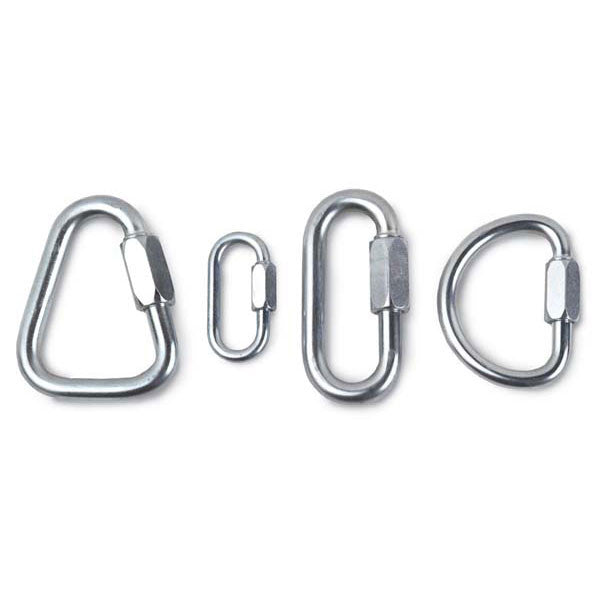

Peguet Maillon Rapide Quick Links

Product #

Certifications: CE

Product Info

Working-At-Height / Industrial Rope Access / Technical Rope Rescue

Working at height requires reliable, quality equipment. The Maillon Rapide Quick Links can be used with confidence in work-at-height maneuvers for industrial rope access or technical rope rescue when used in accordance with the regulatory safety standards they fall under.

Always use life safety equipment and gear according to the regulatory safety standards for which it is classified and/or certified.

Specs
Option Product Weight Bar Diameter Inside Length Material Working Load Breaking Load
Delta, 10 mm 5.3 oz (150 g) 10 mm 2-5/8 in (67 mm) Galvanized Steel 8.8 kN (1,984 lbf) 44.1 kN (9,920 lbf)
Delta, 12 mm 9.1 oz (258 g) 12 mm 3-3/16 in (81 mm) Galvanized Steel 10.8 kN (2,425 lbf) 53.9 kN (12,125 lbf)
Oval, 5 mm 1.3 oz (37 g) 5 mm 1-9/16 in (40 mm) Stainless Steel 4.4 kN (992 lbf) 22.1 kN (4960 lbf)
Oval, 7 mm 1.8 oz (51 g) 7 mm 2-1/16 in (52 mm) Galvanized Steel 5.4 kN (1,213 lbf) 27 kN (6,065 lbf)
Oval, 12 mm 8.2 oz (233 g) 12 mm 3-3/16 in (81 mm) Galvanized Steel 14.7 kN (3,307 lbf) 73.6 kN (16,535 lbf)
Long Oval, 10 mm 5.6 oz (159 g) 10 mm 3-3/8 in (86 mm) Galvanized Steel 9.8 kN (2,205 lbf) 49 kN (11,025 lbf)
Half Moon, 10 mm 5.4 oz (153 g) 10 mm 2-5/8 in (67 mm) Galvanized Steel 8.8 kN (1,984 lbf) 44.1 kN (9,920 lbf)
