CMC Swivels

Product #

Certifications: UL

Products available by Quote Only.

Product Info

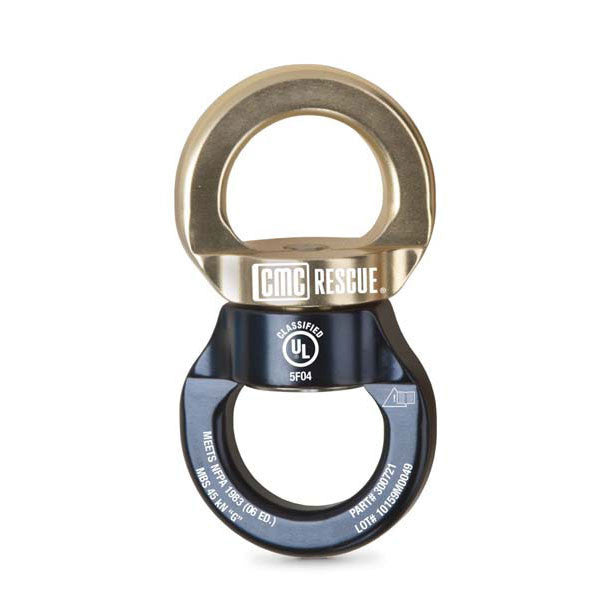

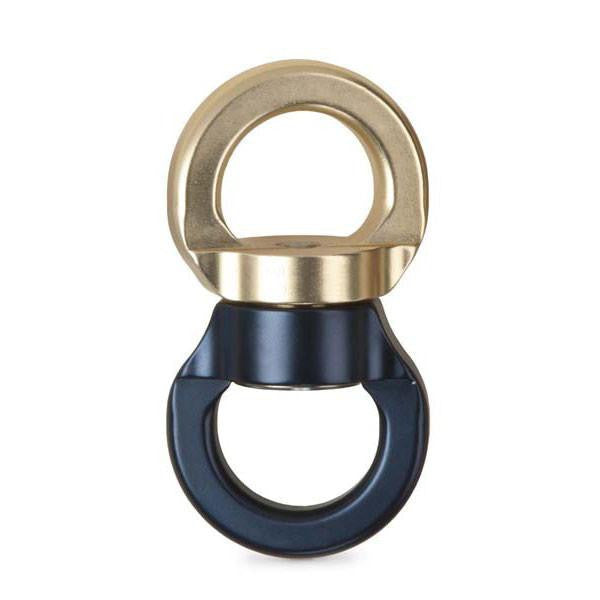

Rescue Swivel - Lightweight and high strength, this standard-size swivel for litter systems features symmetrical holes to accommodate multiple carabiners. High-speed, multi-axis CNC machining delivers a full-featured swivel at a reduced price for the best value in the industry.

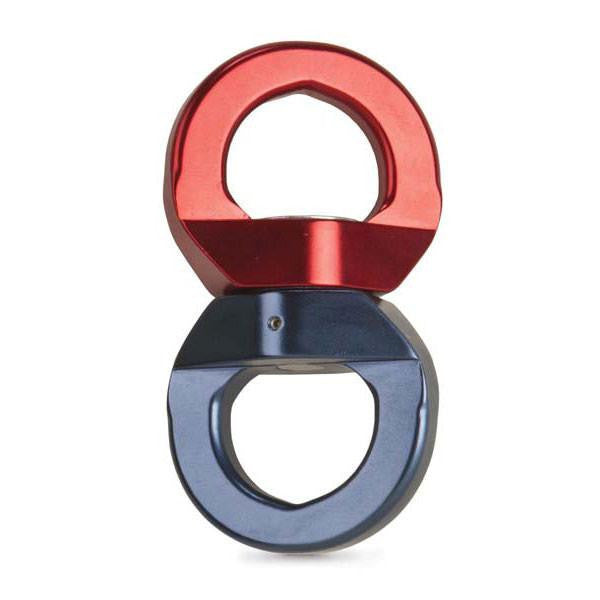

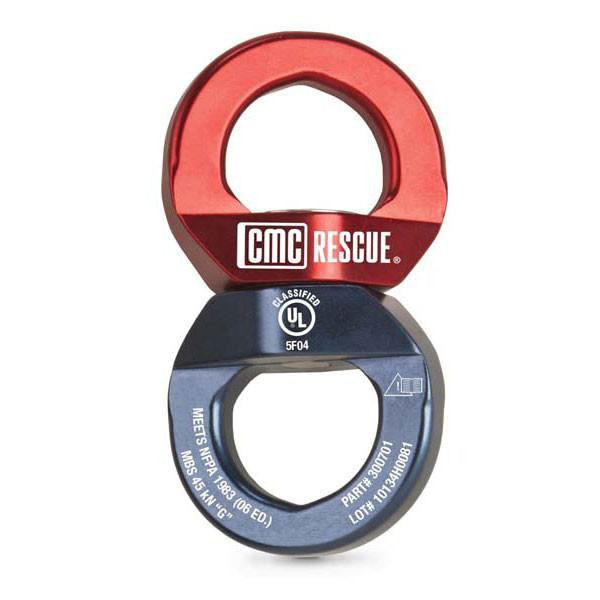

ProSeries Swivel - Designed to repeatedly perform at high loads, this larger swivel's special bearing supports a much higher working load than other swivels without damage to the bearing - perfect for heavy system loads. The larger size makes it compatible with helicopter short haul line equipment.

Specs
Option Product Weight Length Color NFPA Rating 3 sigma MBS
Rescue 4.4 oz (125 g) 3.75 in (95 mm) Sand / Slate General Use 39 kN (8,767 lbf)
ProSeries 6.5 oz (184 g) 4.5 in (114 mm) Red / Slate General Use 44 kN (9,891 lbf)
Documents

Instructions
