CMC Steel Locking D Carabiners

Product #

Certifications: UL

Products available by Quote Only.

Product Info

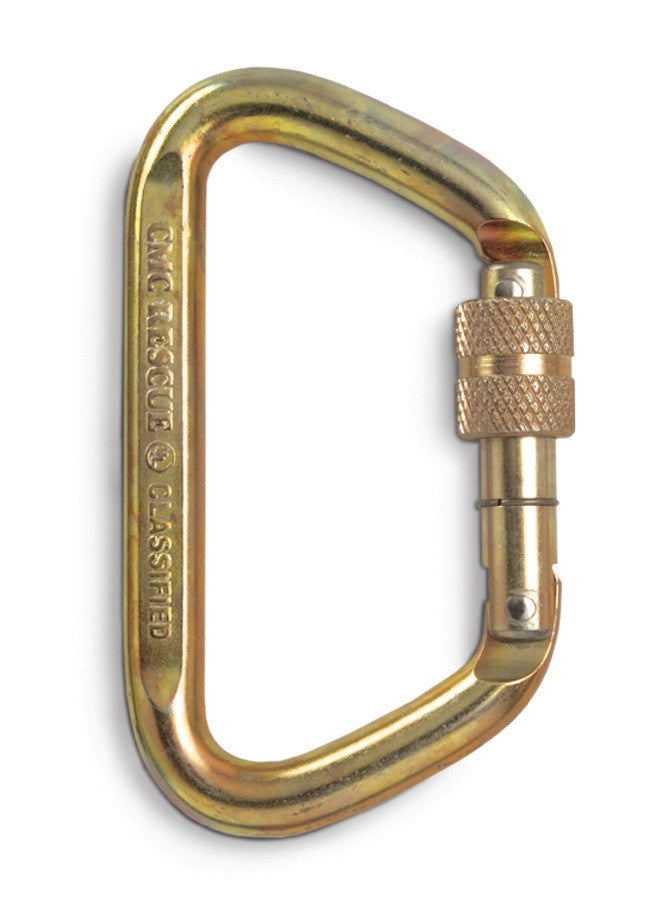

This proven workhorse of General Use carabiners is available in both Screw-Lock and Auto-Lock gates. On the Screw-Lock models the nut locks against the gate to prevent jamming. Auto-locking carabiners decrease the possibility that the user will forget to lock the gate or that the gate will vibrate unlocked while in use.

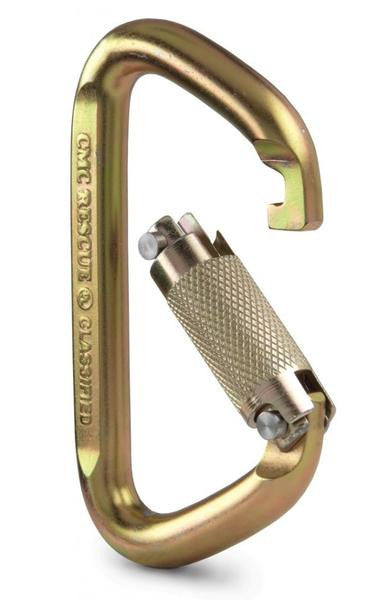

With the safety of a three-stage auto-locking gate that can be easily opened with one hand, these compact models maximize strength yet allow a gate opening wide enough to fit over most litter rails.

Every carabiner is proof loaded

Steel

Major Axis

Minor Axis

Major, Gate Open

300110

72kn

12kn

22kn

300115

72kn

12kn

22kn

300120

72kn

12kn

22kn


Working-At-Height / Industrial Rope Access / Technical Rope Rescue

Working at height requires reliable, quality equipment. The Steel Locking D Carabiners can be used with confidence for work positioning or fall restraint protection in work-at-height maneuvers for industrial rope access or technical rope rescue when used in accordance with the regulatory safety standards they fall under. Always use life safety equipment and gear according to the regulatory safety standards for which it is classified and/or certified.

Specs

Option

Product Weight

Gate Opening

Interior Length

NFPA Rating

3 Sigma MBS

Screw-Lock, Gold

10 oz (283 g)

1.1 in (28 mm

3.95 in (100 mm)

General Use

72 kN (16,186 lbf)

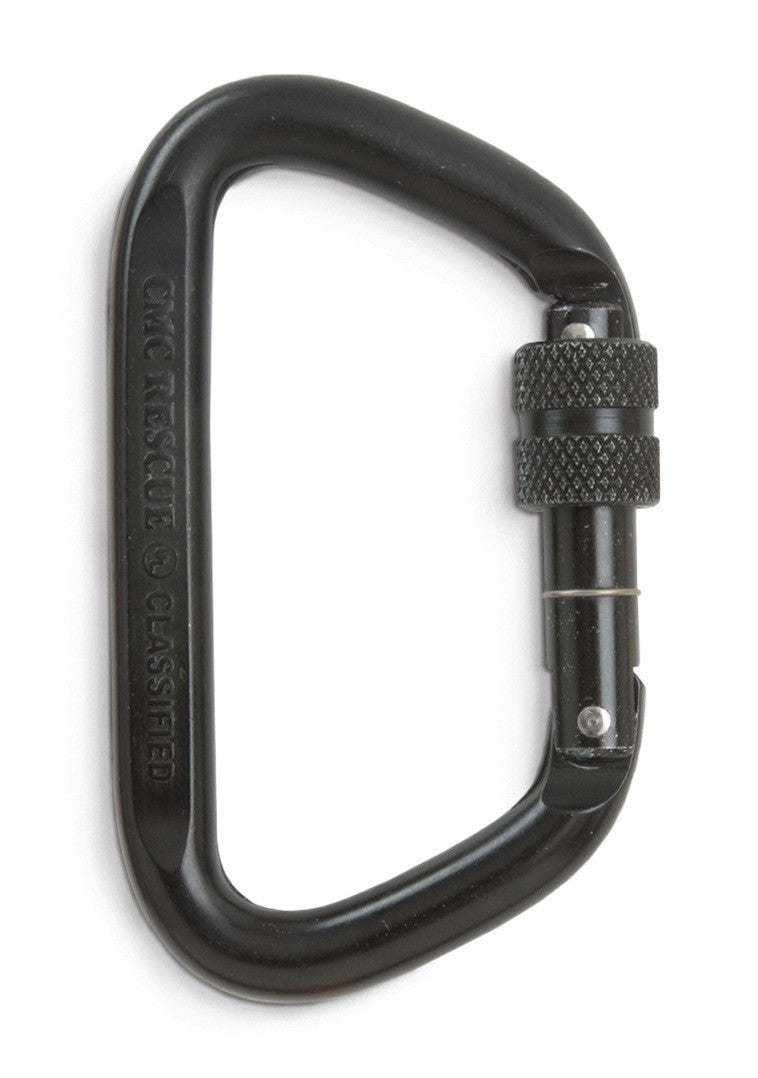

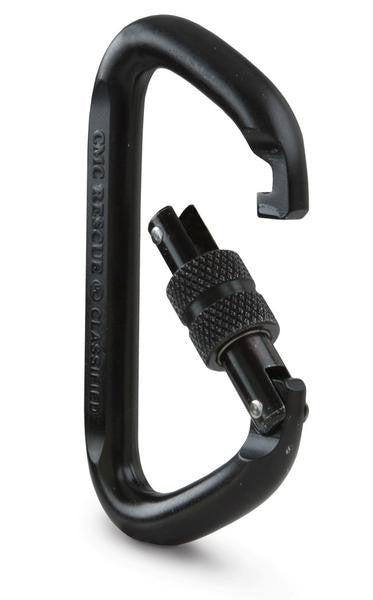

Screw-Lock, Black

10 oz (283 g)

1.1 in (28 mm

3.95 in (100 mm)

General Use

72 kN (16,186 lbf)

Auto-Lock, Gold

10.9 oz (309 g)

1.1 in (28 mm

3.95 in (100 mm)

General Use

72 kN (16,186 lbf)
