CMC Rescue CSR2 Pulley

Product #

Products available by Quote Only.

Product Info

An integral thrust-bearing swivel reduces torque by aligning the pulley with the load, thereby increasing efficiency and safety. Its larger size allows for the easy application of rescue-size carabiners.

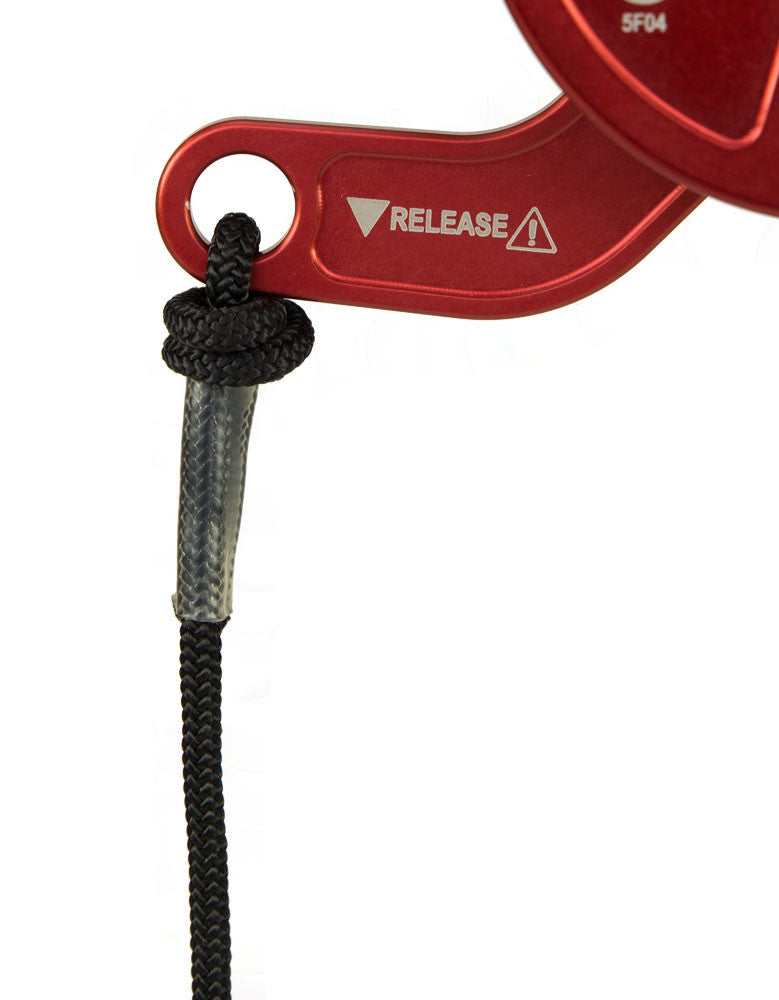

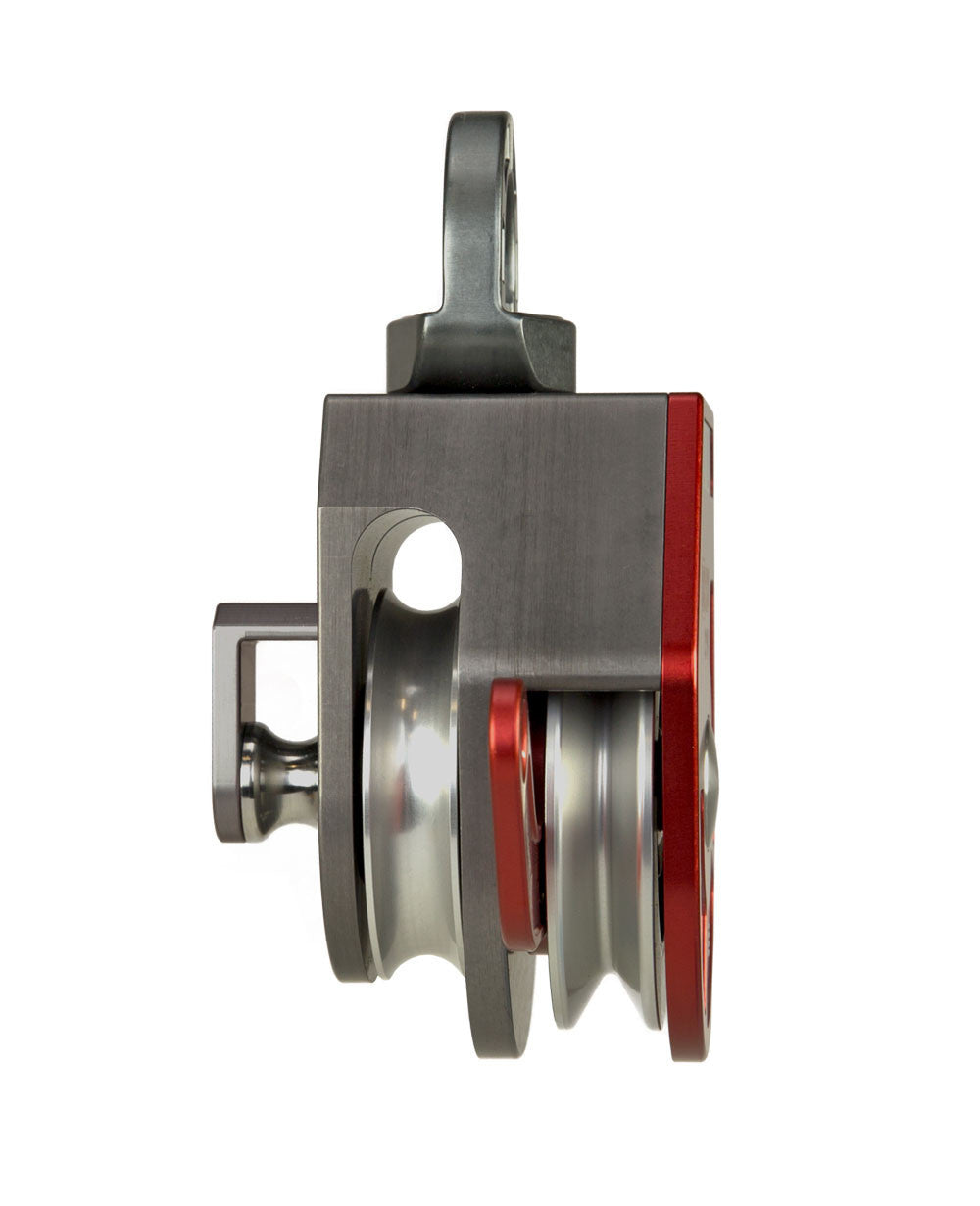

Machined from a solid block of aircraft-grade aluminum, the CSR2 features a high-strength aluminum side plate, sealed bearings and anodized aluminum sheaves. The side becket location allows for maximum lift height and full retraction of the system, and a removable becket cover facilitates changing out lifeline with sewn terminations.

Key Features
  • All-new stronger, lighter-weight design
  • Compatible with 11-13 mm rope
  • Meets NFPA 1983 (2012 ED) - General Use
  • CSR2 Pulley MBS 46 kN (10,341 lbf) / CSR2 Double Pulley MBS 51 kN (11,465 lbf)
  • Machined from solid block of aircraft-grade aluminum
  • Made in USA
Specs
Option Weight MBS Sheave Tread Size Color NFPA Rating

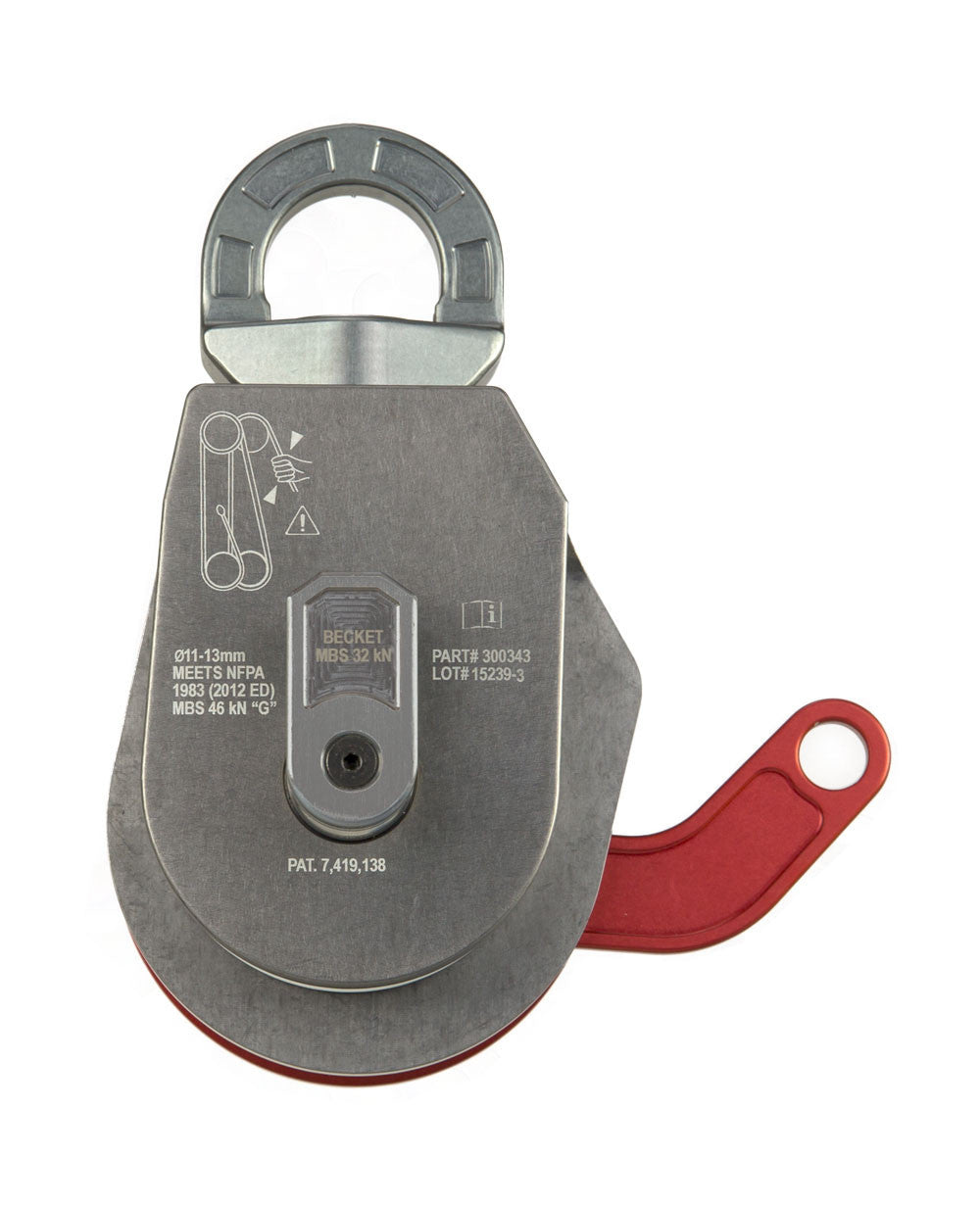

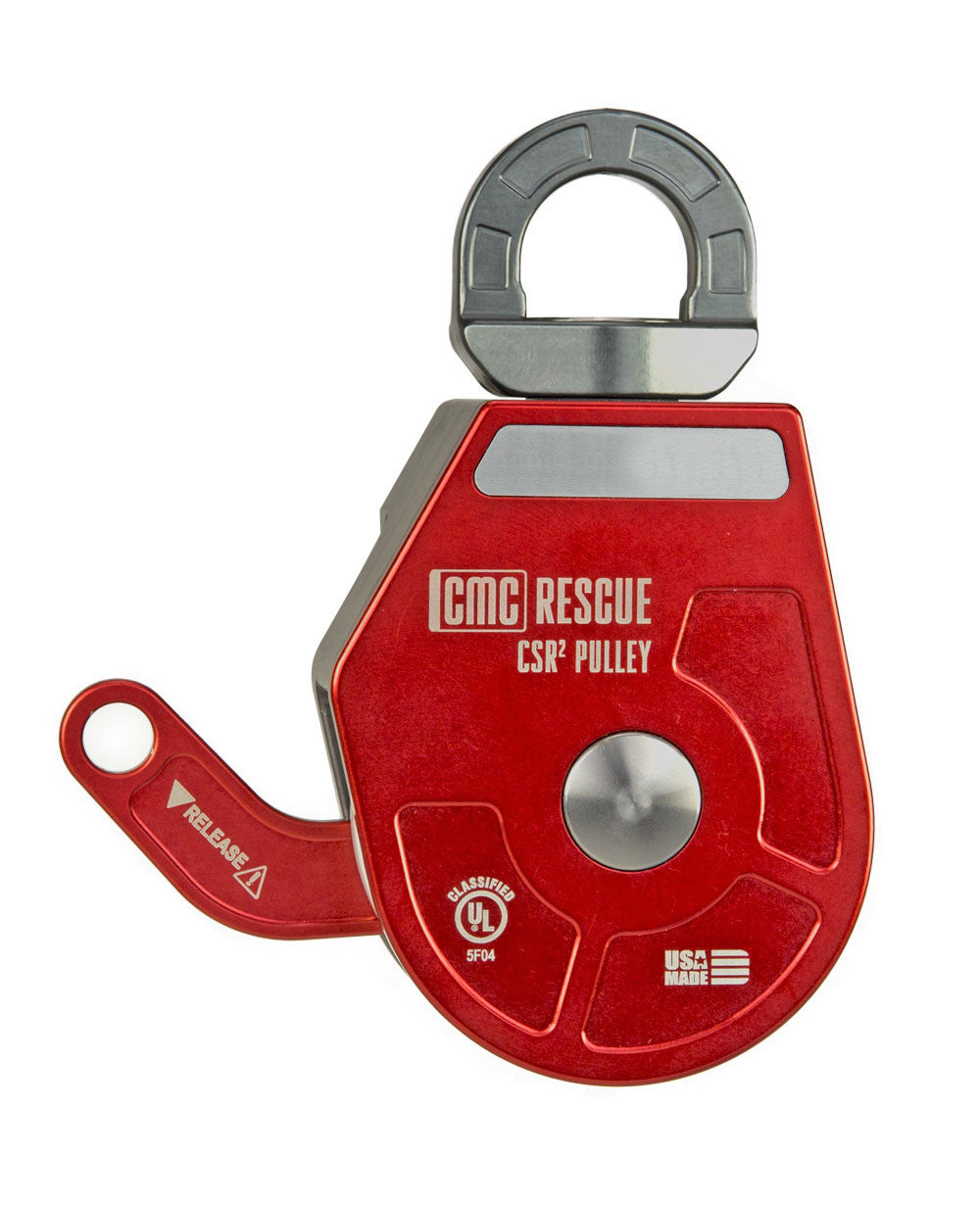

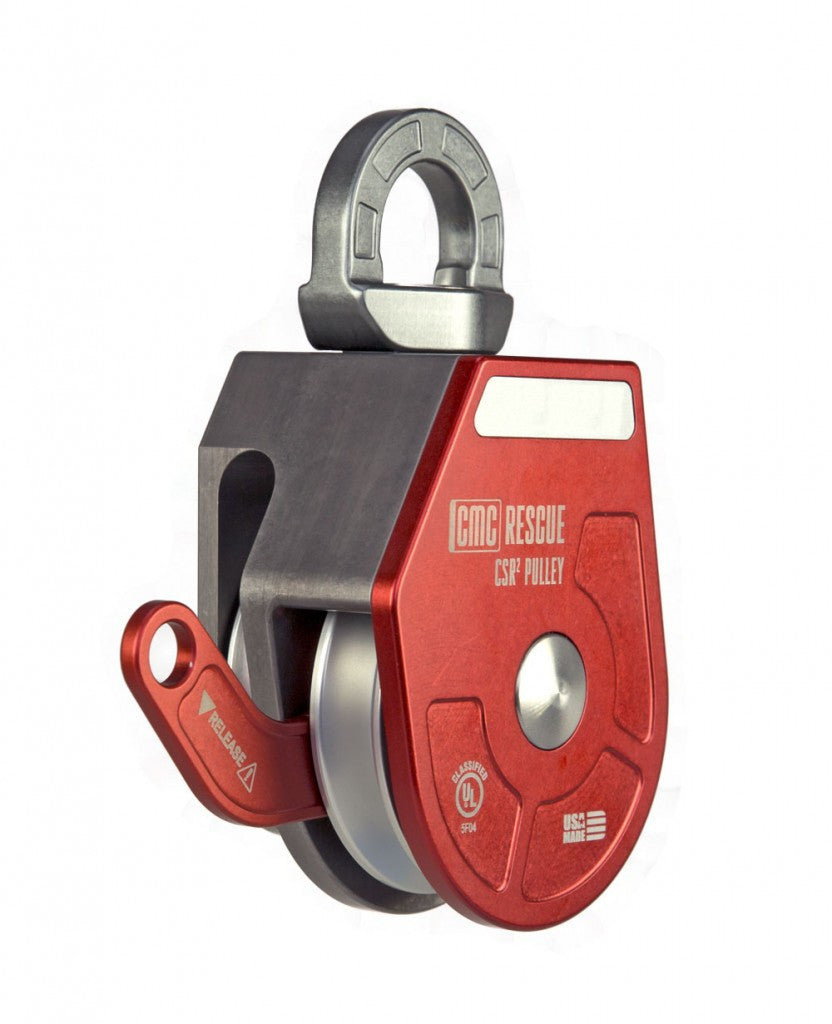

CSR2 Pulley 2.5 lb (1.1 kg) 46 kN (10,340 lbf) 2 1/4 x 1/2 in (57 x 13 mm) Red / Gray General Use

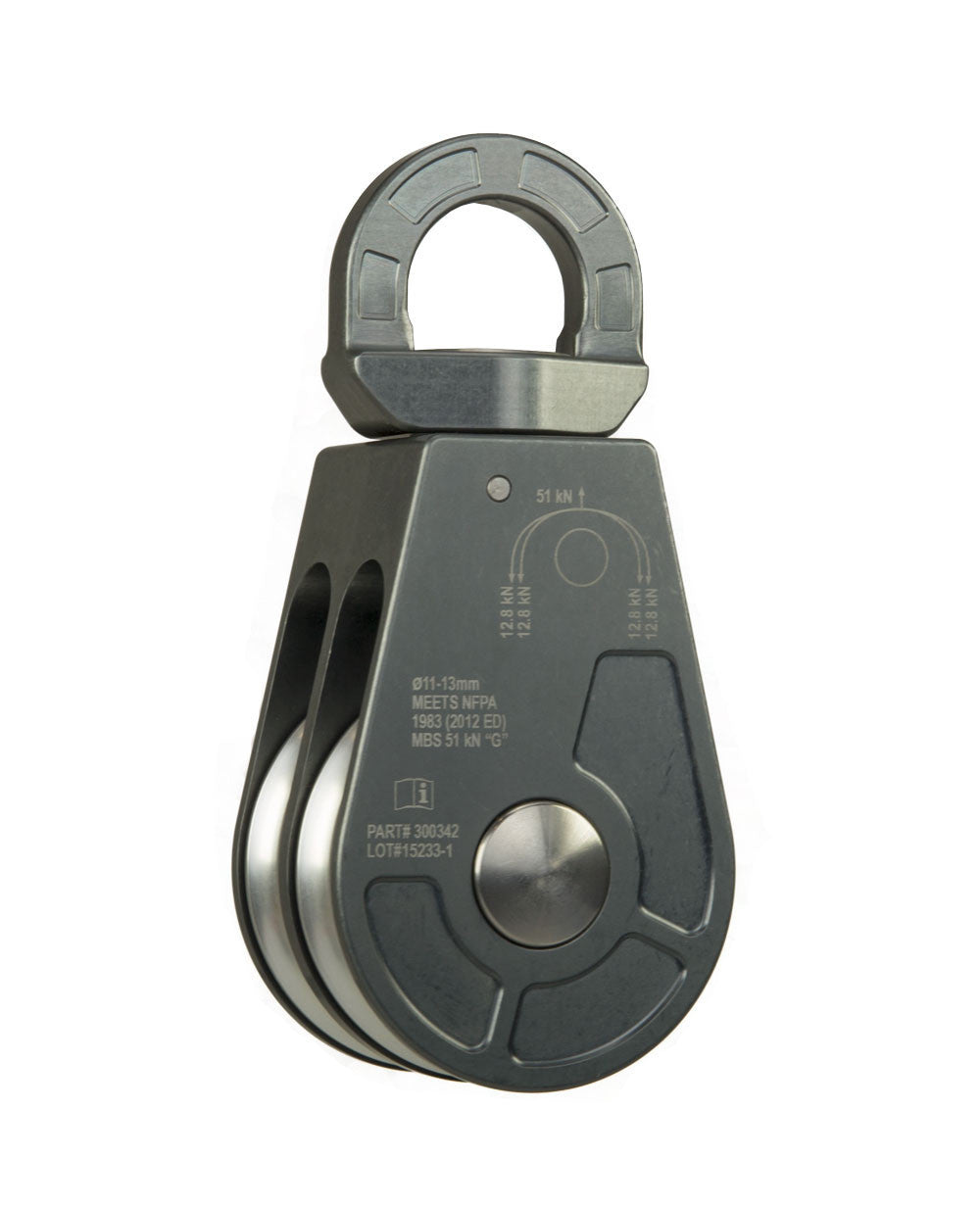

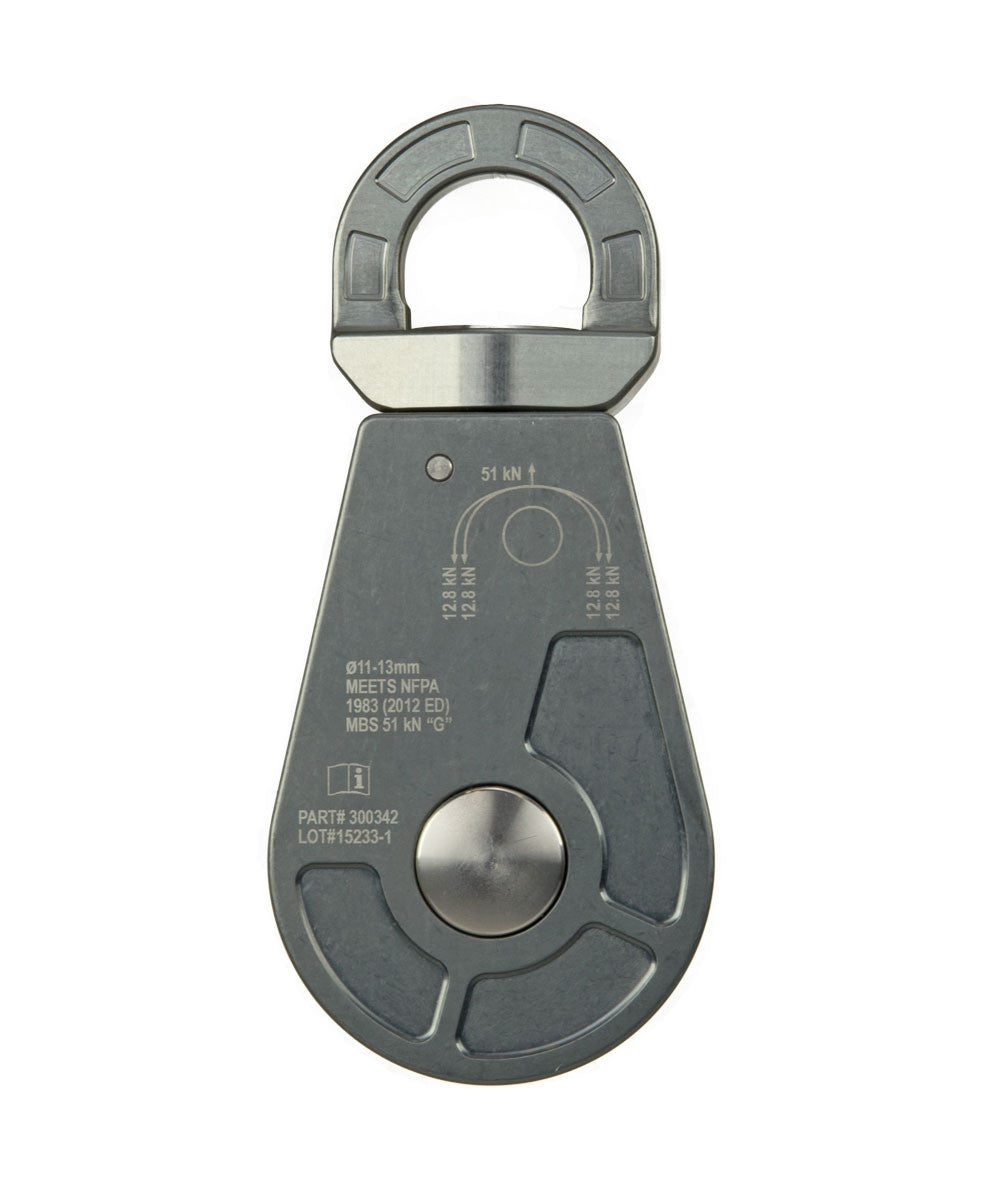

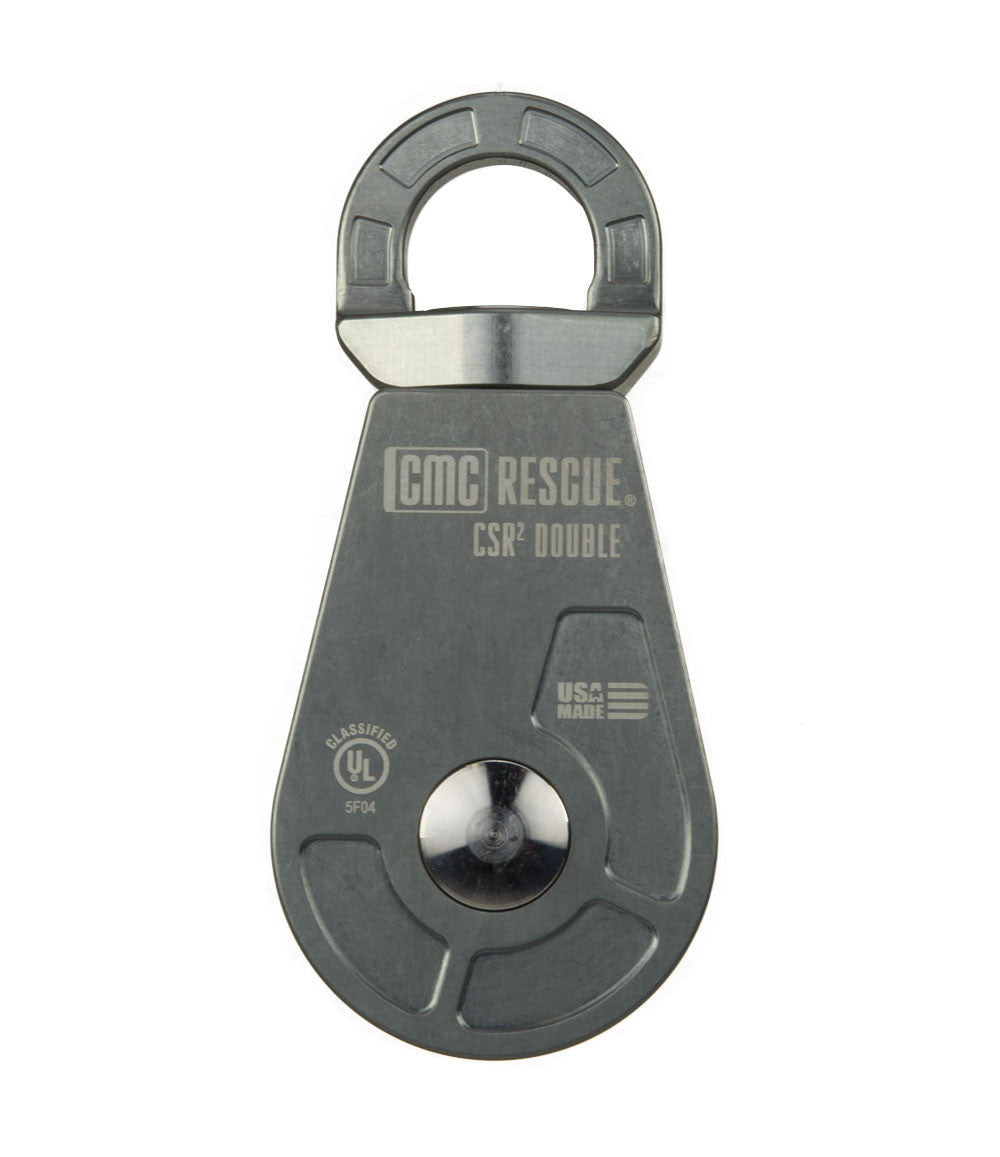

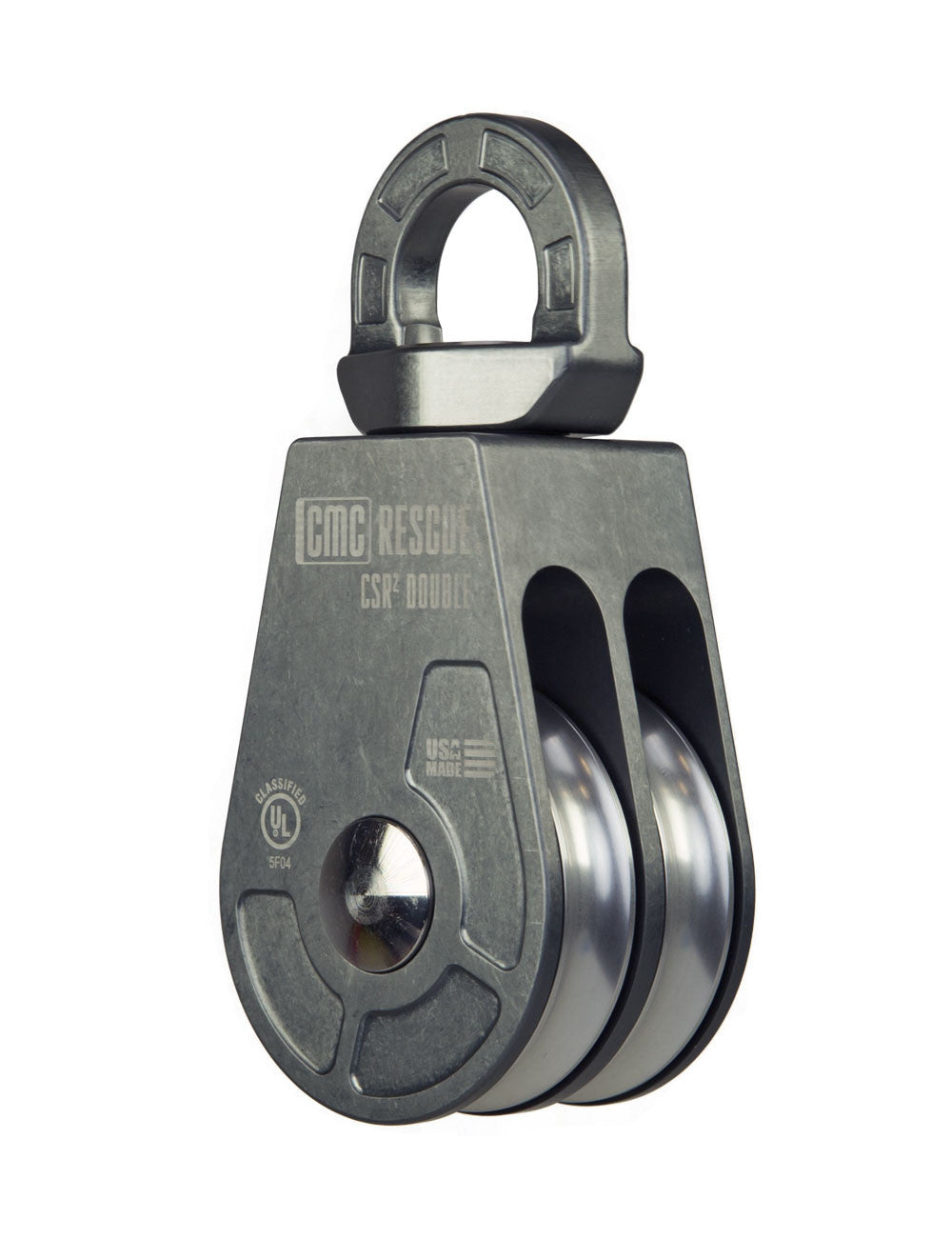

CSR2 Double Pulley 1.5 lb (680 kg) 51 kN ( 11,464 lbf) 2 1/4 x 1/2 in (57 x 13 mm) Gray General Use
