CMC Enforcer Load Cell Kit

Product #

Certifications: UL

Products available by Quote Only.

Product Info

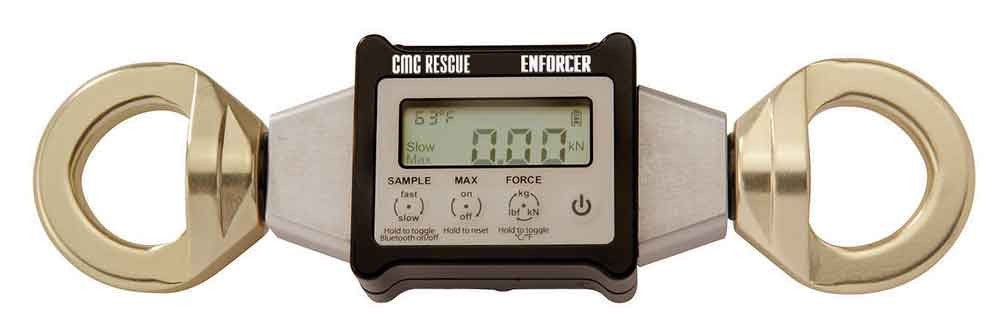

This compact device can measure force up to 20 kN, and with two sampling modes, the ENFORCER LOAD CELL monitors systems and logs drop testing in high resolution. Along with unique features such as Bluetooth connectivity and swivel attachment points, the Enforcer stands in a class of its own.

Key Features
  • Lightweight aluminum construction.
  • Compact, portable design for in-line use in rope rigging systems. G rated!
  • Swivel attachment points to diminish potentially dangerous torsional and off-axis forces.
  • Two sampling modes  Slow for monitoring, Fast for drop testing.
  • Measures force in kN, lbf and kg.
  • UL Certified to NFPA 1983, General Use (CMC Rescue Enforcer Load Cell model only!)

GET THE ENFORCER APP FOR iOS DEVICES (SOLD SEPARATELY)!

The Enforcer App for iOS devices greatly increases capabilities of the Enforcer Load Cell, adding the ability to monitor static forces remotely and record dynamic events at up to 500 samples per second. With the app you can also view a graph of the force or send as an email attachment for further analysis. App developed by Ourea slf. Sold separately through the App Store.

Compatibility

 Requires iOS 7.0 or later. Compatible with iPhone 4S, iPhone 5, iPhone 5c, iPhone 5s, iPhone 6, iPhone 6 Plus, iPad Wi-Fi (3rd generation), iPad Wi-Fi + Cellular (3rd generation), iPad Wi-Fi (4th generation), iPad Wi-Fi + Cellular (4th generation), iPad mini Wi-Fi, iPad mini Wi-Fi + Cellular, iPad Air, iPad Air Wi-Fi + Cellular, iPad mini 2, iPad mini 2 Wi-Fi + Cellular, iPad Air 2, iPad Air 2 Wi-Fi + Cellular, iPad mini 3, iPad mini 3 Wi-Fi + Cellular, and iPod touch. This app is optimized for iPhone 5.

Specs
PRODUCT WEIGHT DIMENSIONS COLOR NFPA RATING 3 SIGMA MBS
14 OZ (397 G 8 X 2 X 1.5 IN (203 X 51 X 38 MM) BLACK / SAND GENERAL USE 50 KN (11,240 LBF)
