Petzl Coeur Bolt Stainless (20 Pack)

Product #

Certifications: EN 959

Product Info

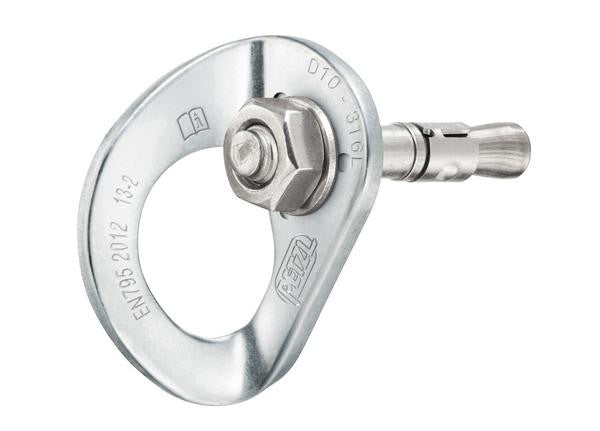

Stainless steel anchor composed of a COEUR STAINLESS hanger, a bolt and a nut, designed for typical exterior uses. It is available in 10 and 12 mm diameters.

Key Features
  • Complete and durable assembly:
    - comprised of a COEUR STAINLESS hanger, nut and bolt
    - 316L stainless steel offers excellent resistance to corrosion in typical exterior environments
    - hanger anti-rotation system: textured back keeps the hanger from turning when the anchor is being installed or when it is heavily laterally loaded during use
  • Easy clipping:
    - the wide, ergonomic connection hole facilitates carabiner clipping
    - the width of the hole allows installation of two carabiners at the same time
  • Prevents wear of carabiners: the thickness of the hanger and the rounded edges of the connection hole limit wear of carabiners
  • Available in two bolt sizes (10 or 12 mm)
Specs
  • Material(s): 316L stainless steel
  • Certification(s): EN 959

References P36BS 10 P36BS 12
Diameter 10 mm 12 mm
Weight 110 g 135 g
Length 7 cm 8,5 cm
Drilling depth 7 cm 8,5 cm
Drilling diameter 10 mm 12 mm
Resistance to cutting on concrete 50 MPa 25 kN 25 kN
Pull-out strength in concrete 50 MPa 25 kN 25 kN
Guarantee 3 years 3 years
Packing 20 20
