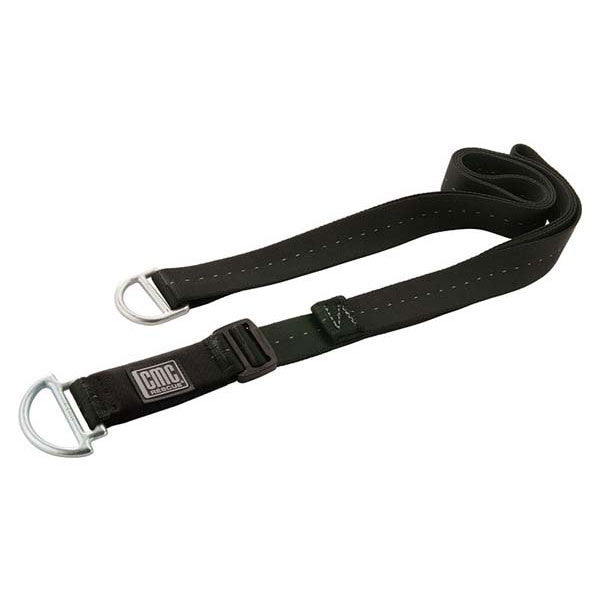

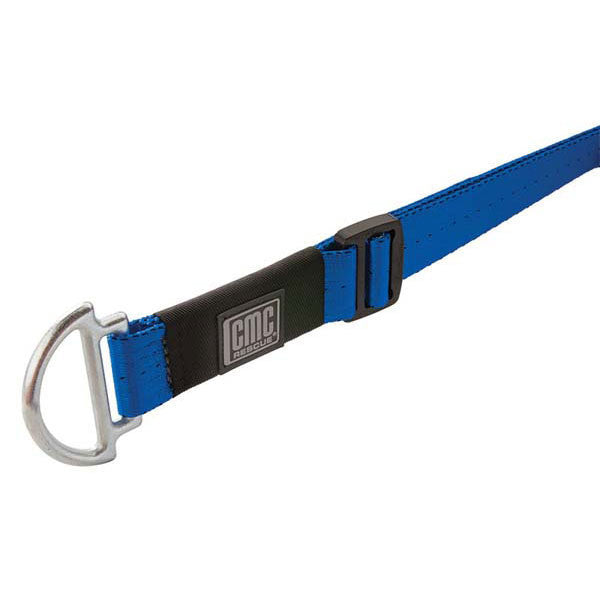

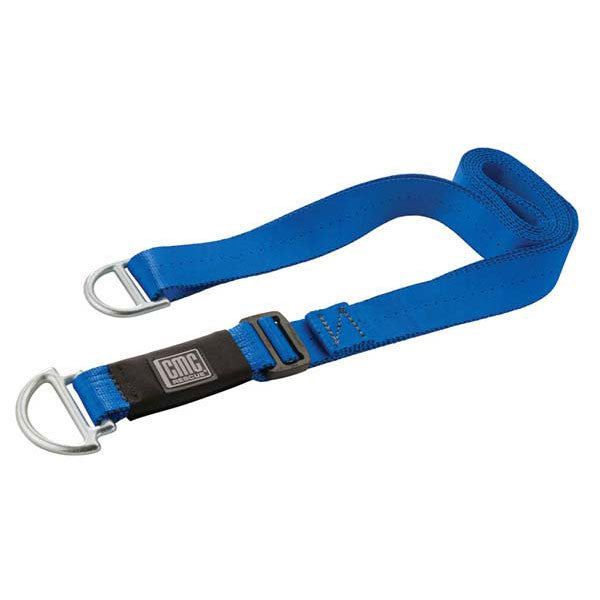

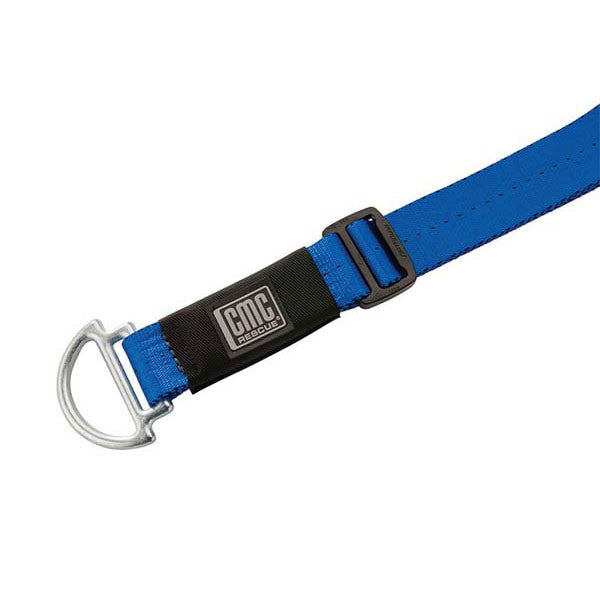

CMC Variable Anchor Strap
Product Info
Our Variable Anchor Strap differs significantly in design and performance from other adjustable anchor straps. By using an additional length of web, it can handle a higher load before slipping. It adjusts from 3 ft (91 cm) to 7 ft (213 cm). The D-ring on one end is larger so the other end can pass through, allowing the strap to be rigged in a choker (girth hitch) configuration and still be adjusted. The high strength, quick adjustability and variable length make this strap a jack of all trades. Sewn-on web keeper allows for improved organization when stowed.
Note: We recommend using a Delta Quick Link connector (part #382121) to prevent possible tri-axile loading of a carabiner when used in a basket configuration.
Strength Specifications with Blue Web:
Basket (U) Configuration: 70 kN (15,736 lbf)
End-to-End Configuration: 27 kN (6,070 lbf)
Choker Configuration: 39 kN (8,767 lbf)
Strength Specifications with Black Web:
Basket (U) Configuration: 60 kN (13,488 lbf)
End-to-End Configuration: 29 kN (6,519 lbf)
Choker Configuration: 35 kN (7,868 lbf)
Specs
| Option | Item | Product Weight | Length | Color | NFPA Rating |
|---|---|---|---|---|---|
| Blue | 201020 | 1.6 lb (737 g) | 3 - 7 ft (91 - 213 cm) | Blue | General Use |
| Black | 201040 | 1.6 lb (737 g) | 3 - 7 ft (91 - 213 cm) | Black | General Use |
