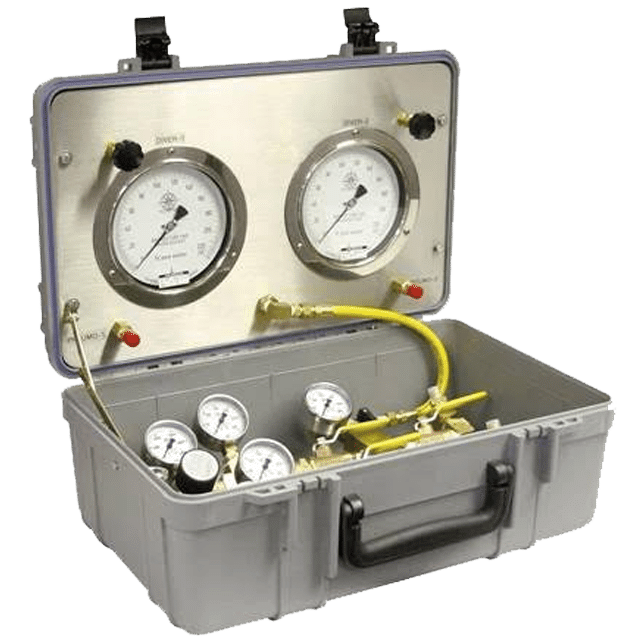

Aqua Lung Two Diver Air Control Panel

SKU: 400750

Product Info

The Two Diver Air Control Box - High Pressure and its variants are all composed of materials designed to resist offshore/saltwater environments. The case is made out of high-impact plastic and is water tight when closed and locked. A stainless steel faceplate resists corrosion and houses two 0.50% accuracy pneumo gauges which are plumbed with pneumatic nylon tubing. The air manifold is made of brass for rugged, reliable use in the field.

Key Features

Faceplate

  • Stainless steel

Pneumo Gauges

  • 6u201d face
  • 225 FSW (100 MSW gauges optional)
  • 0.50% accuracy
  • 1/4u201d MPT connection
  • Brass internals
  • Certified for 6 months from factory

Manifold

  • 1000 psi brass fittings
  • 1/2u201d ball valves rated to 600 psi
  • Check valves rated to 400 psi

Low Pressure Gauges

  • 1/4u201d MPT connection
  • 300 psi (27 bar optional)
  • Stainless case
  • Brass internal

High Pressure Gauge

  • 1/4u201d MPT connection
  • 5000 psi
  • Stainless steel case
  • Brass internal

Pressure Reducing Regulator

  • ufeff6000 psi in/0-220 psi out

Pneumo Supply

  • ufeff300 psi rated hose
  • Brass reusable fittings
