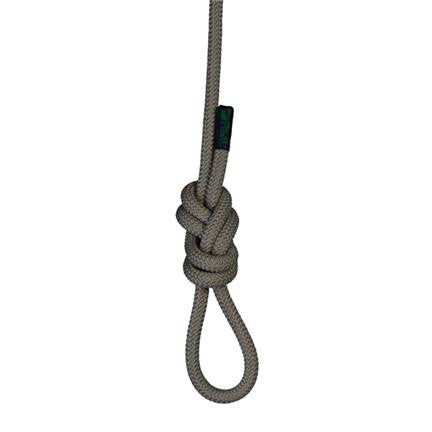

PMI 12.5mm Heatshield Rope
SKU:
HS125TG183A
By
PMI
Product Info
The sheath is 100% Technora featuring a high tensile strength, good fatigue resistance, heat resistance, excellent dimensional stability, and chemical resistance.
Key Features
- Sheath - 100% Technora
- Core - 100% Nylon 6.6
- High modulus of elasticity
- Low creep
- Low thermal shrinkage
- Thermal decomposition threshold 500u00b0C (932u00b0F)
- Can be used for long periods at a temperature of 250u00b0C (482u00b0F)
Specs
| Certifications | CI 1801 Low Stretch |
| Color | Natural Gold |
| MBS | 45.8 kN (10307 lbf) |
| Weight | 110.9 g/m |
| Diameter | 12.5 mm (1/2") |
| Length | 183 m (600 ft) |
| Elongation | 2.2% at 300 lbf | 5.2% at 600 lbf | 8.6% at 1000 lbf |
| Elongation @ 10% MBS | 8.8% |
| Material | Technora Sheath/Nylon Core |
