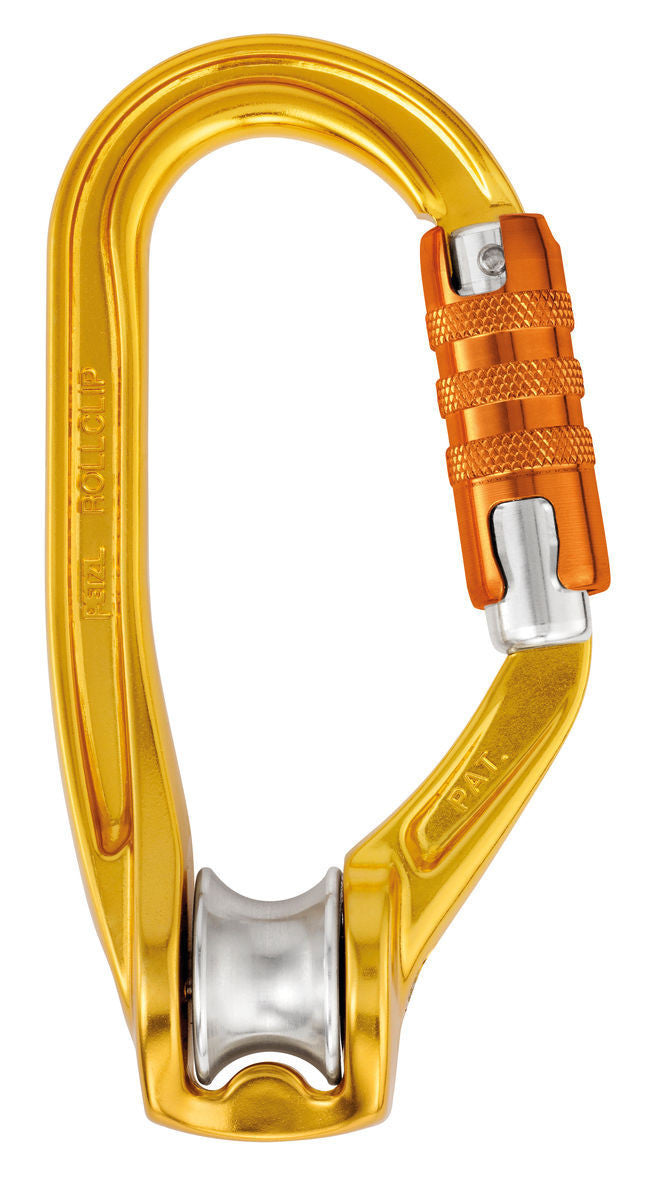

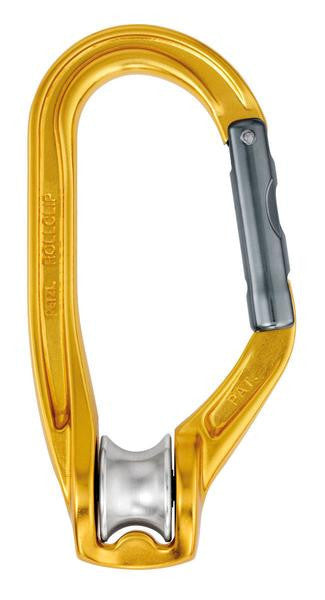

Petzl Rollclip A Pulley Carabiner
SKU:
P74
By
Petzl
Product Info
Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor
ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Key Features
- Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency
- gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor
- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place
- H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion
- Available in versions with or without TRIACT-LOCK locking system
Specs
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
| References | P74 TL | P74 |
|---|---|---|
| Locking system | TRIACT-LOCK | Non-locking |
| Weight | 115 g | 105 g |
| Certification(s) | CE EN 362, EN 12275, EN 12278, UKCA, EAC | CE EN 12275, EN 12278, UKCA, EAC |
| Gate opening | 22 mm | 25 mm |
| Guarantee | 3 years | 3 years |
