CMC Aztek ProSeries System
Product Info
UL Classified to NFPA 1983 (2012 ED.) - General Use
Originally developed by Reed Thorne of Arizona-based Ropes That Rescue, the AZTEK (Arizona Technician's Edge Kit) offers more than 100 rigging solutions in a bag, and reflects the philosophy of keeping rigging equipment simple, efficient, non-specialized, light and small. Thorne also worked closely with CMC Rescue to create the innovation-loaded, AZTEK ProSeries Pack.

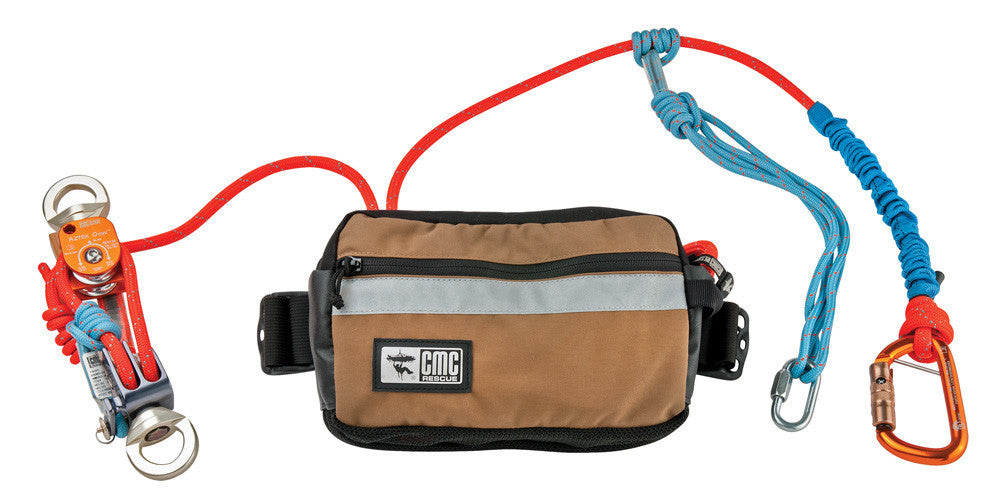

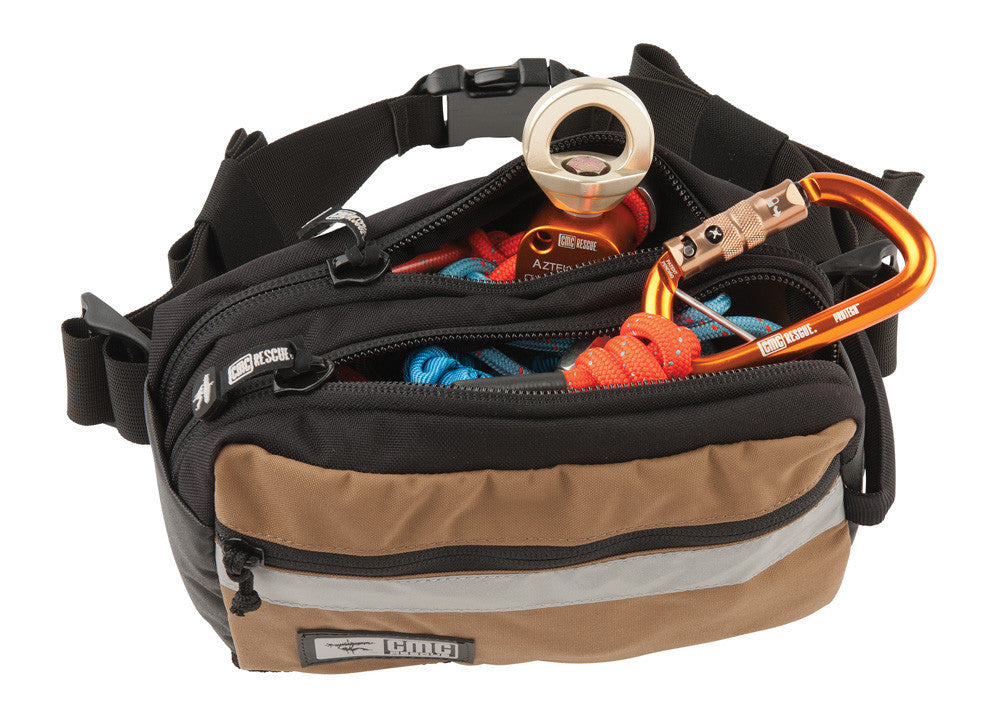

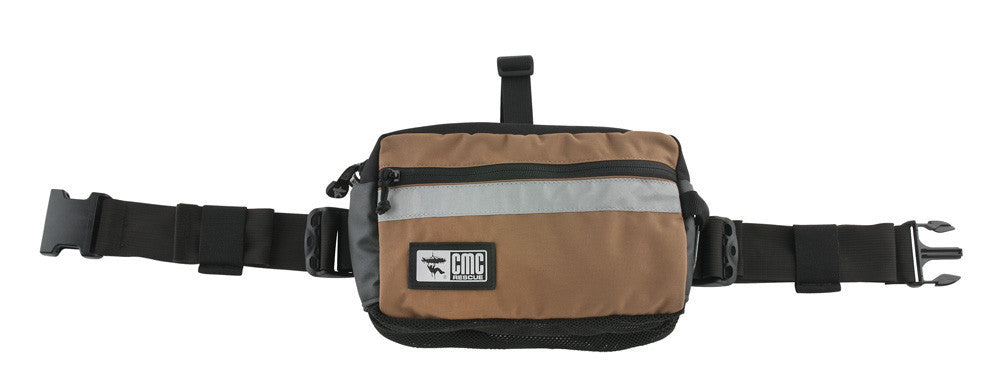

The subsequent design of the new CMC Rescue AZTEK ProSeries System leaves no detail ignored. Each component - from the cord to the pack - was thoroughly tested and proven to work efficiently in this multifunctional system that comes pre-rigged for immediate deployment to the field. The CMC Rescue AZTEK ProSeries System is the only AZTEK System UL Classified to NFPA 1983 (2012 ED.) - General Use, Manufactured System.
With 50 feet of 8 mm AZTEK ProSeries Cord (CMC Rescue's high-performance 100% nylon blend with abrasion resistance), the set-of-fours system can extend to 12 feet while providing a 5:1 mechanical advantage (M/A) with a minimum breaking strength (MBS) of 36 kN (8,093 lbf).
For an edge travel-restraint system, with nearly 50 feet of adjustable travel, simply attach the carabiner end of the cord to an appropriate anchor. The tubular web Edge-Pro can also be repositioned when wrapping the cord around anchors with abrasive surfaces.
Made In USA
Uses
Whether using the set-of-fours (SOFs) as a quick 4:1 or 5:1 M/A for a multitude of rigging applications, or for personal edge protection, the versatile AZTEK ProSeries System gives rescuers endless rigging solutions.
- Quickly adjust a litter attendant or litter position
- Easily pass knots
- Correct disoriented equipment under load
- Effortlessly transfer loads
- Promptly establish dynamic fixed brakes
- Back-tie or redirect anchors
- Establish travel restriction
- Dynamic Directionals
- Dynamic Lowers
- Hauling Systems
- High Angle Attendant Tether
- High Angle Litter Scoops
- Load-releasing Hitch
- Personal Mechanical Advantage (PMA)
- Solo Pick-off

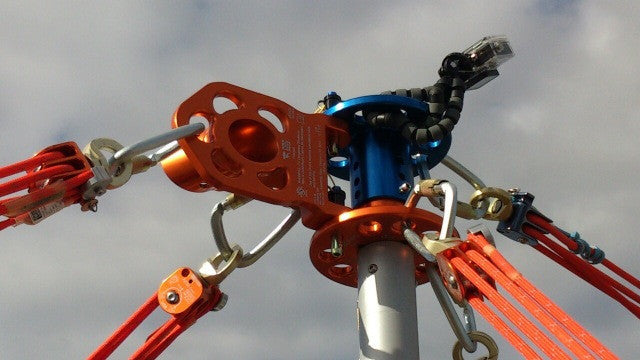

- Tensioned Guying
- Tensioned Back-ties

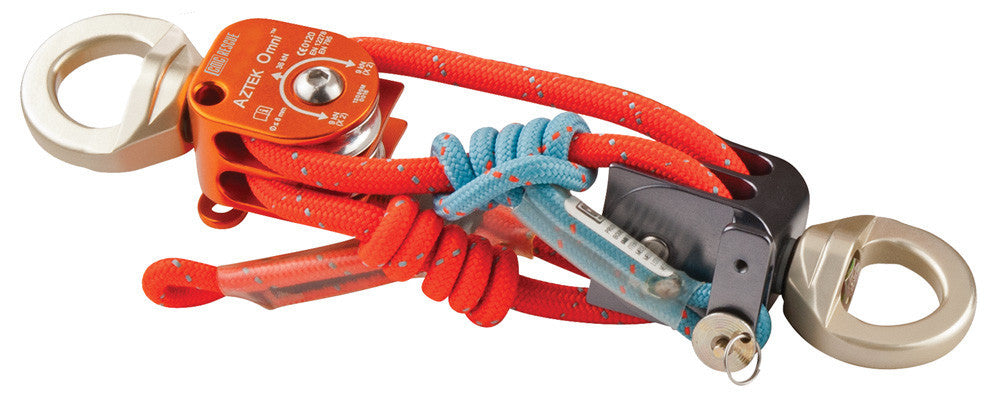

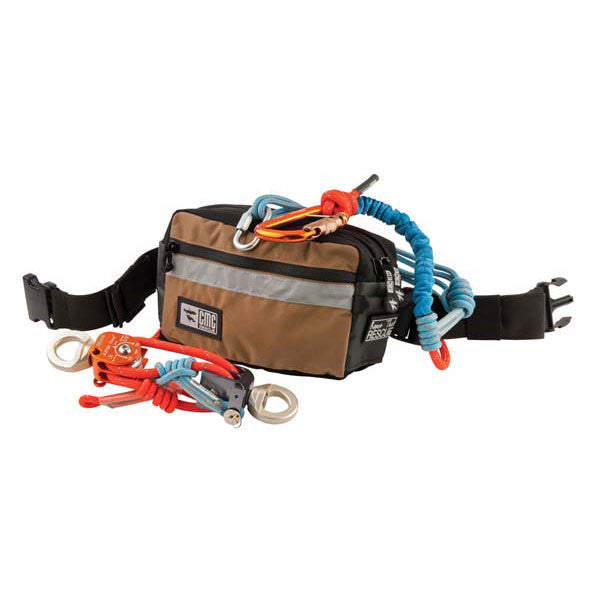

- CMC Rescue AZTEK Omni Pulley Set, (one blue, one orange) - UL Classified to NFPA 1983 (2012 ED.)

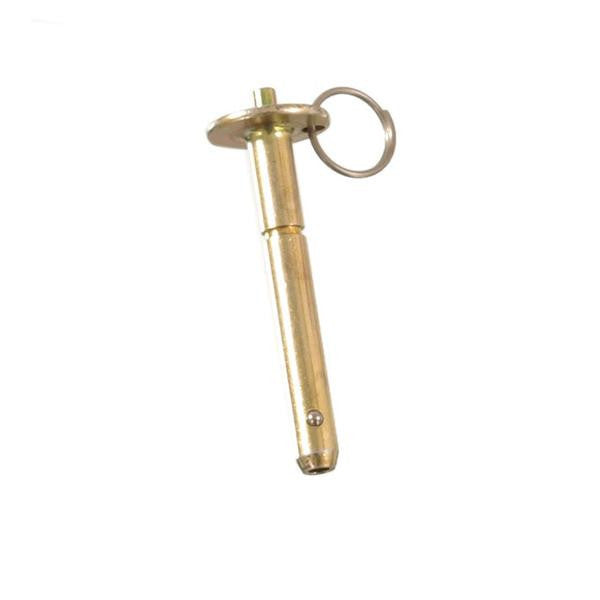

- Quick Pin for AZTEK Omni Pulley
- AZTEK ProSeries Cord -15 kN (3,372 lbf), 8-mm, Hi-Viz orange, 50' w/ Sewn-Eye Termination -12 kN (2,698 lbf)
- AZTEK Edge-Pro Tubular Webbing, blue 24"

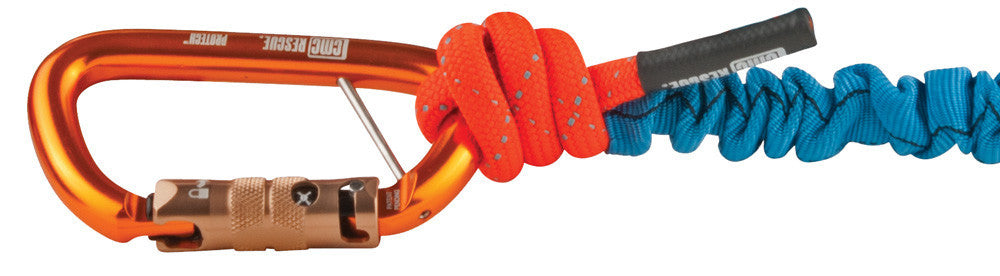

- ProTech Aluminum Manual-Lock Carabiner w/ removable keeper pin - 31 kN (6,969 lbf)
- AZTEK Bound-Loop Prusik, orange (6 mm) - 9"
- AZTEK Bound-Loop Prusik, blue (6 mm) - 9"
- AZTEK Bound-Loop Purcell, blue (6 mm) - 42"
- Maillon Rapide Quick Link, Oval (7 mm) - 27kN (6,065 lbf)
Working at height requires reliable, quality equipment. The AZTEK ProSeries System can be used with confidence for work positioning or fall restraint protection in work-at-height maneuvers for industrial rope access or technical rope rescue when used in accordance with the regulatory safety standards the system and its components fall under. Always use life safety equipment and gear according to the regulatory safety standards for which it is classified and/or certified.
