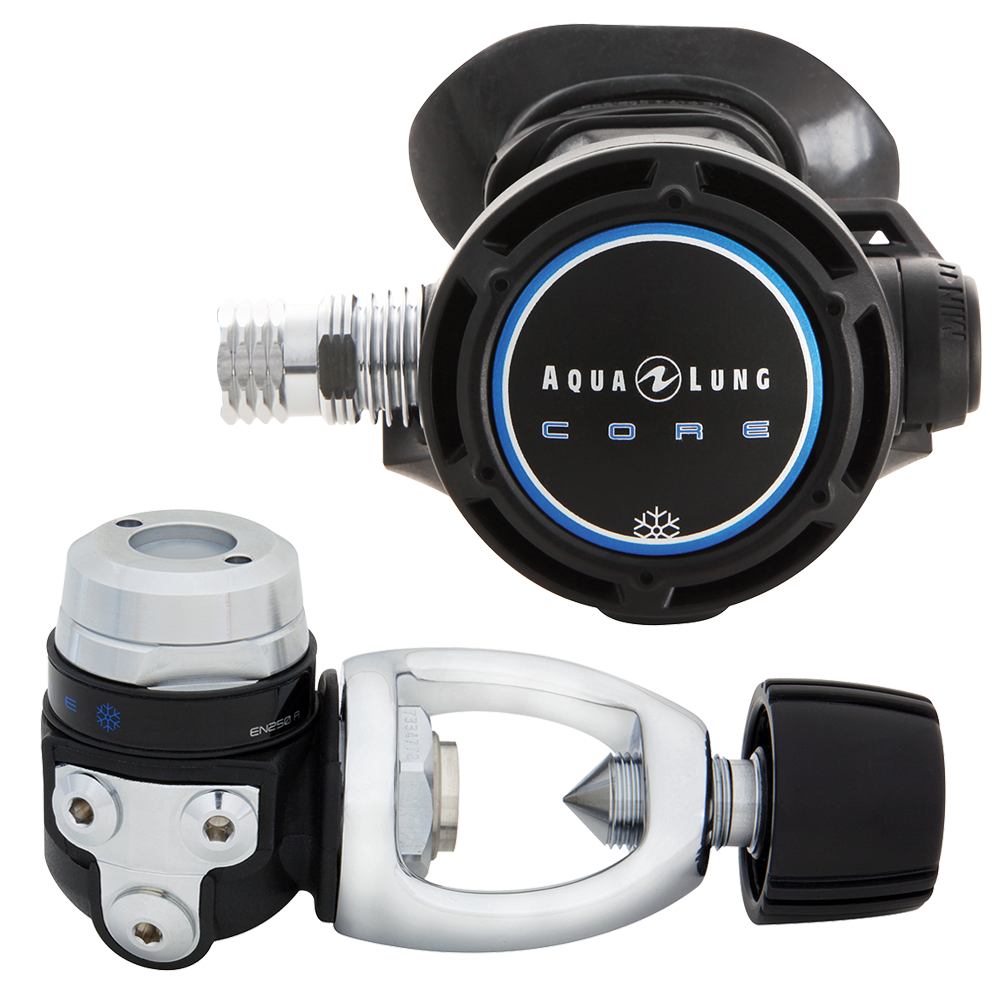

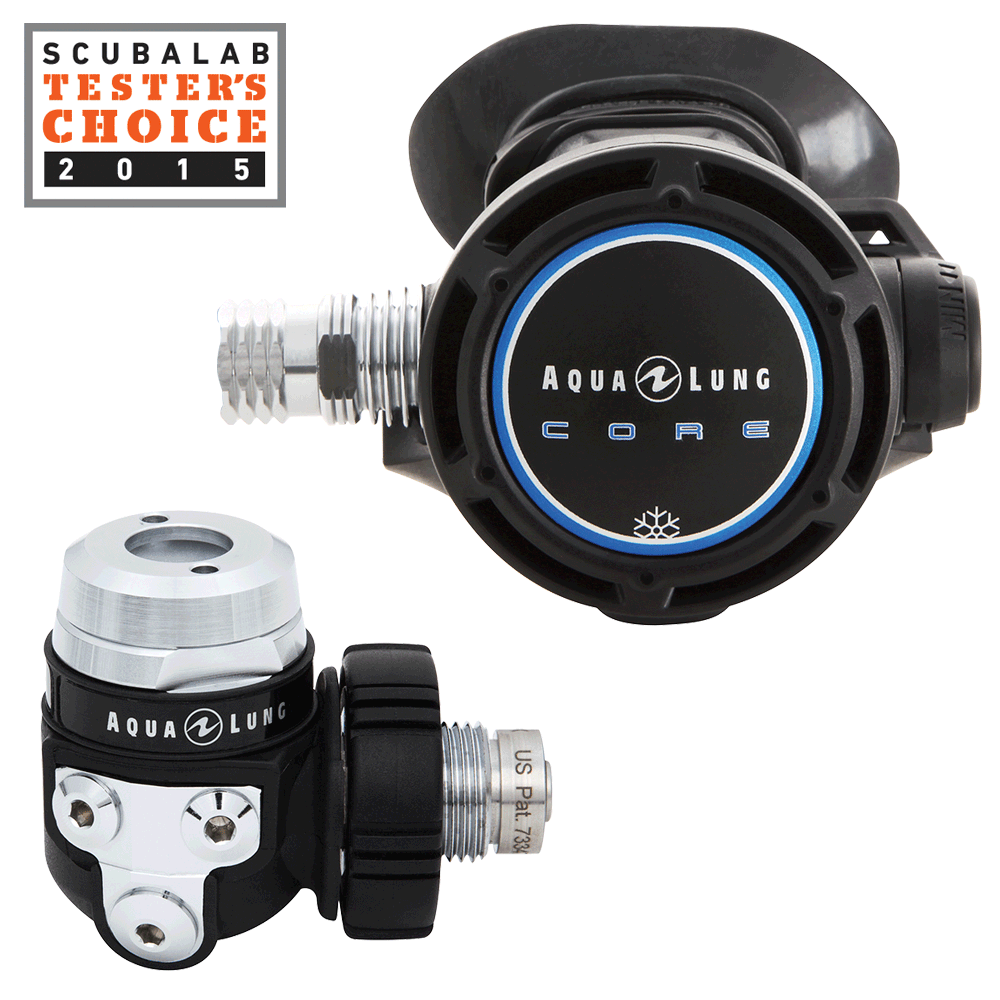

Aqua Lung CORE Supreme
SKU:
129920
Product Info
The CORE regulator's amazing breathing, which is rated as u201csuperioru201d on the ANSTI breathing machine, coupled with its generous features, at an attractive mid-range price, provides the best value of any regulator offered today. The CORE comes standard with Aqua Lungu2019s unique, patented, auto-closure device (ACD) which seals water out.
Key Features
- Auto Closure Device (ACD) - keeps corrosive water out of the first stage inlet by automatically closing as the CORE is removed from the cylinder valve
- This prevents internal lubrication from washing away
- Safer for elevated percentages of oxygen
- The balanced diaphragm first stage provides superior, consistent performance
- The pneumatically-balanced second stage results in smooth, easy breathing
- Available in yoke (3300 psi / 232 bar max) or din (4350 psi / 300 bar max)
- The T-shape of the first stage optimizes the location of the 4 MP ports and 2 HP ports
- Uses parts that are common to other Aqua Lung models for easier servicing
- The easy-to-grip venturi lever prevents unwanted freeflow at the surface while giving a performance boost at depth
- A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water
- Compatible with EAN 40 new, out of the box
- Equipped with Aqua Lungu2019s patented Comfo-biteu2122 mouthpiece along with a reusable mouthpiece clamp
- The Supreme cold water version is resistant to freezing when diving in waters colder than 50°F / 10u00b0C
- The Supreme version is equipped with an environmental dry chamber on the first stage and a lip shield on the second stage.
Specs
| Number of models | 4 models: CORE yoke, CORE din, CORE Supreme yoke, CORE Supreme DIN |
| Type of first stage | Balanced diaphragm design |
| Auto-Closure Device (ACD) | Yes |
| Number of HP ports | 2 |
| Number of MP ports | 4 |
| 1st Stage Flow Rate | 1450 l/min |
| 1st Stage Weight in DIN | 510 g |
| 1st Stage Weight in Yoke | 700 g |
| Environmental Dry Kit | On Supreme model only |
| First stage exterior | Chrome over marine brass |
| Type of second stage | Pneumatically balanced |
| Controls | Venturi switch |
| Breathing resistance | Preset |
| Mouthpieces | 2ea. u2013 A Comfobite, installed, and a standard with bite wings in the box |
| Lip shield | On Supreme models only |
| Heat Exchanger for freezing resistance | Standard on all models |
| 2nd Stage Weight | 175 g |
| 2nd Stage Weight u2013 Supreme model | 178 g |
| Hose length | 730 mm |
| Overall work of breathing (WOB) scores | Avg. 0.80 joules/liter |
| Nitrox compatible | Yes to 40% O2 when new, out of the box |
